Product description
Food and beverage pure water equipment is to desalinate groundwater into pure water to meet customer industry water requirements.
The raw water passes through the pretreatment system of multi-media filter and activated carbon filter to remove particulate impurities, colloids and residual chlorine in the water, and then passes through the reverse osmosis system to remove bacteria, viruses and other microorganisms in the water and most of the heavy metal plasma that is harmful to the human body.

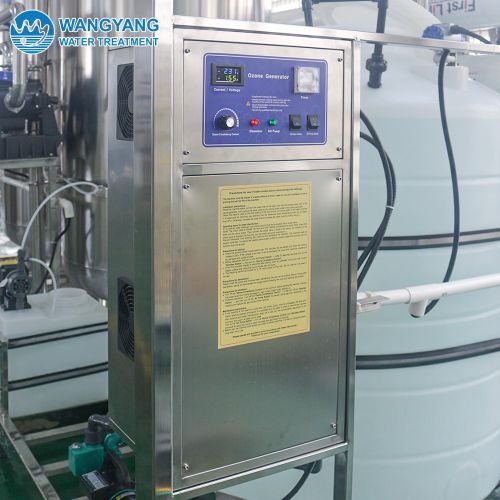

The produced water can be directly used for the production water of food and beverage through the post-treatment system of ultraviolet sterilizer and ozone generator.

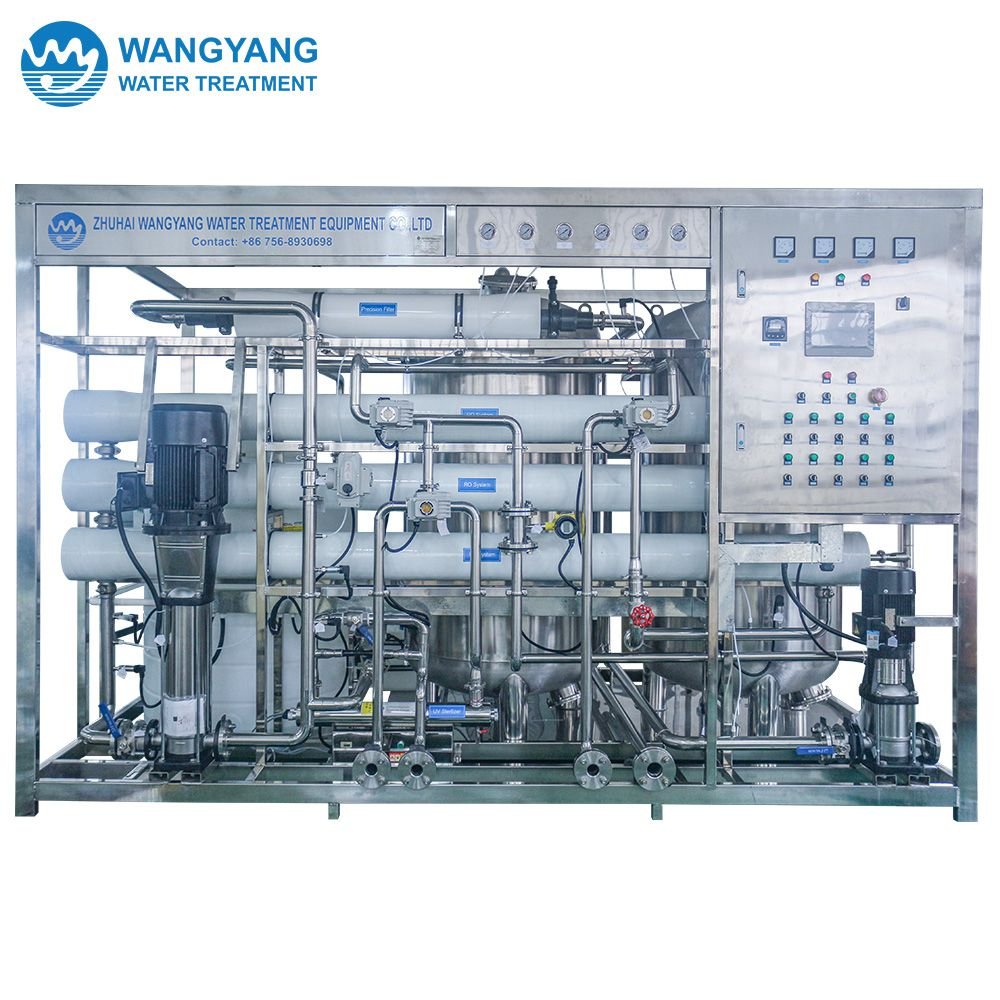

The overall skid-mounted design of the equipment, multi-media filter, activated carbon filter, pipeline and valve are all stainless steel, which can be fully automated and easy to operate and maintain.
Specifications
| Model | WY-TW-216 |
|---|---|
| Configuration | Single Pass RO |
| Water yield | 9 m3 per hour |
| RO product water quality(TDS) | <10mg/L |
| Desalination rate | >99.5% |
| Recovery rate | 75% (Depending on temperature and inlet water quality) |
| Operation pressure | <3Mpa |
| Power | 14KW |
| Voltage | 380V / 50Hz / 3PH |
| Protection grade | IP54 |
| Reference Dimension | 3800*2100*2500mm |
| Frame Material | Stainless steel |
* 1. Equipment can be customized according to customer requirements.
System function
1. Low-pressure shutdown protection. When the pre-treatment water supply is insufficient and the high-pressure pump inlet pressure is lower than 0.05MPa, the protection action will be automatically stopped and an audible and visual alarm will be issued.

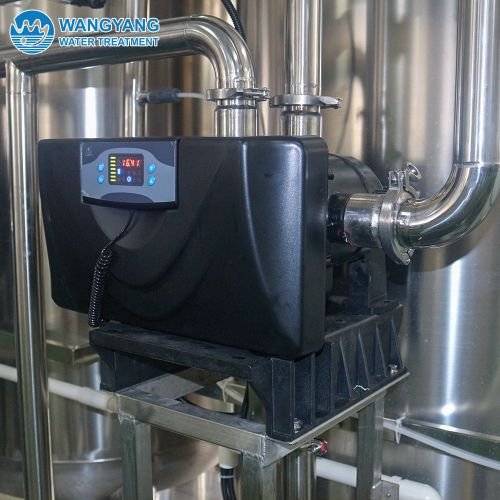

2. The pretreatment is equipped with a control multi-way valve, and the quartz sand filter and the activated carbon filter are cleaned under a certain pressure difference.
3. The reverse osmosis membrane cleaning system is equipped with physical cleaning, chemical cleaning and filling of the reverse osmosis membrane module.

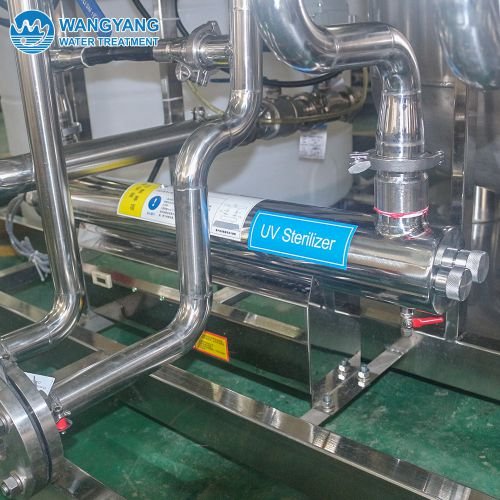

4. Matching ultraviolet sterilizer to ensure water quality.

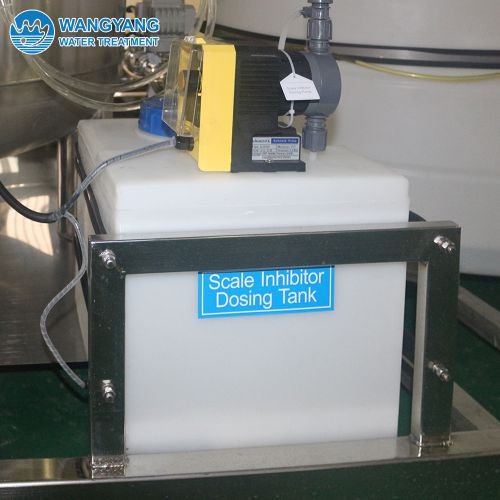

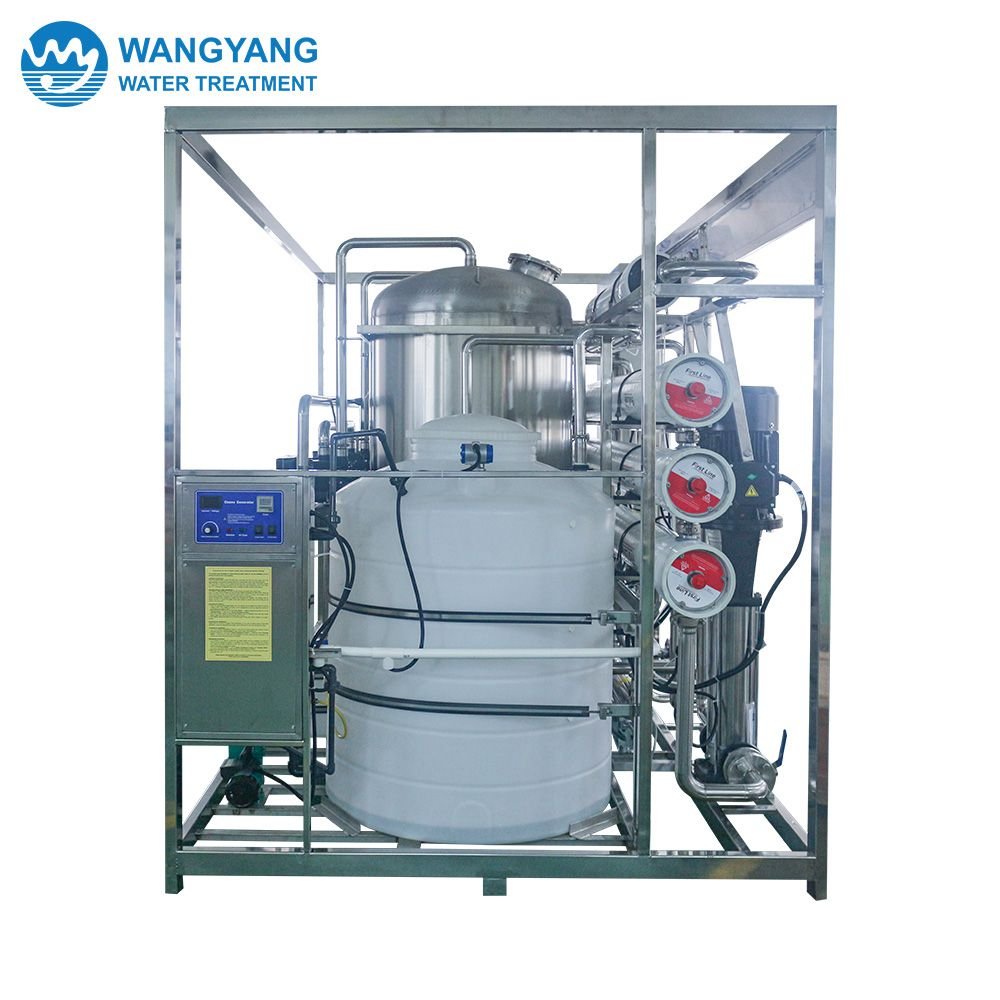

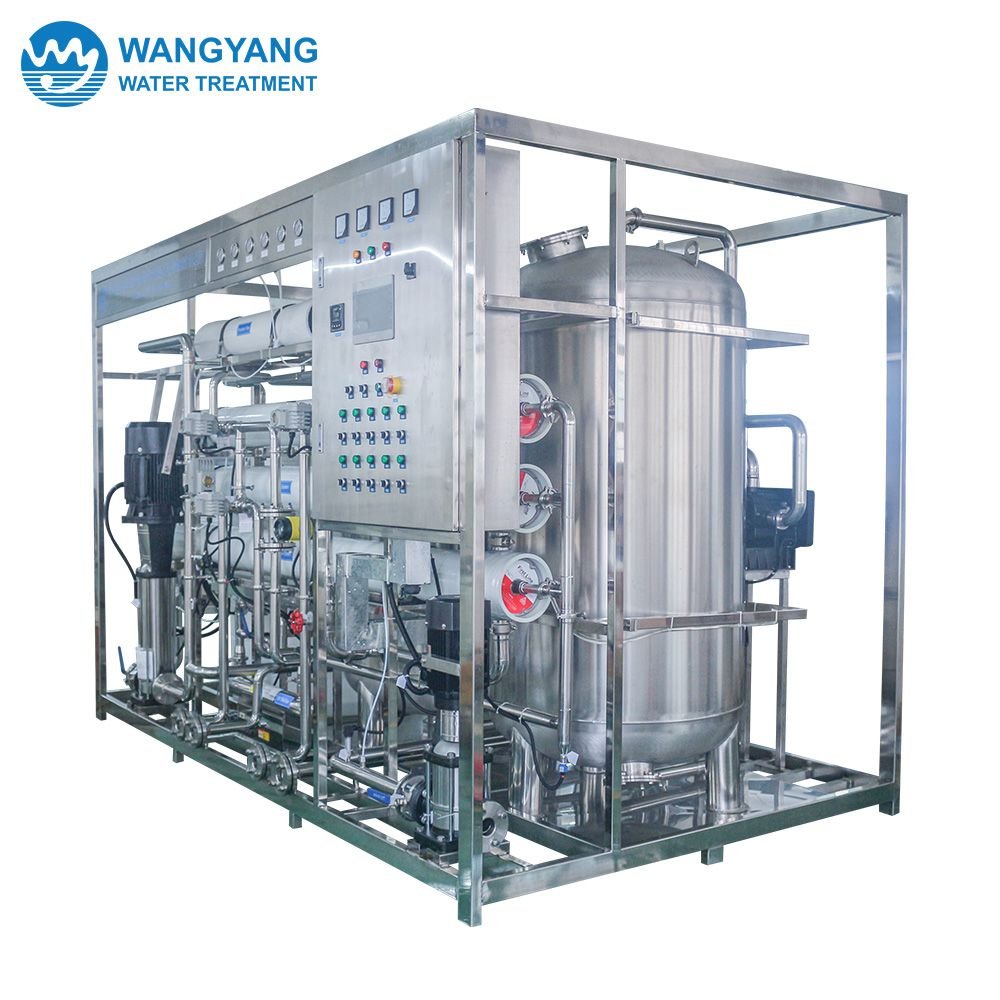

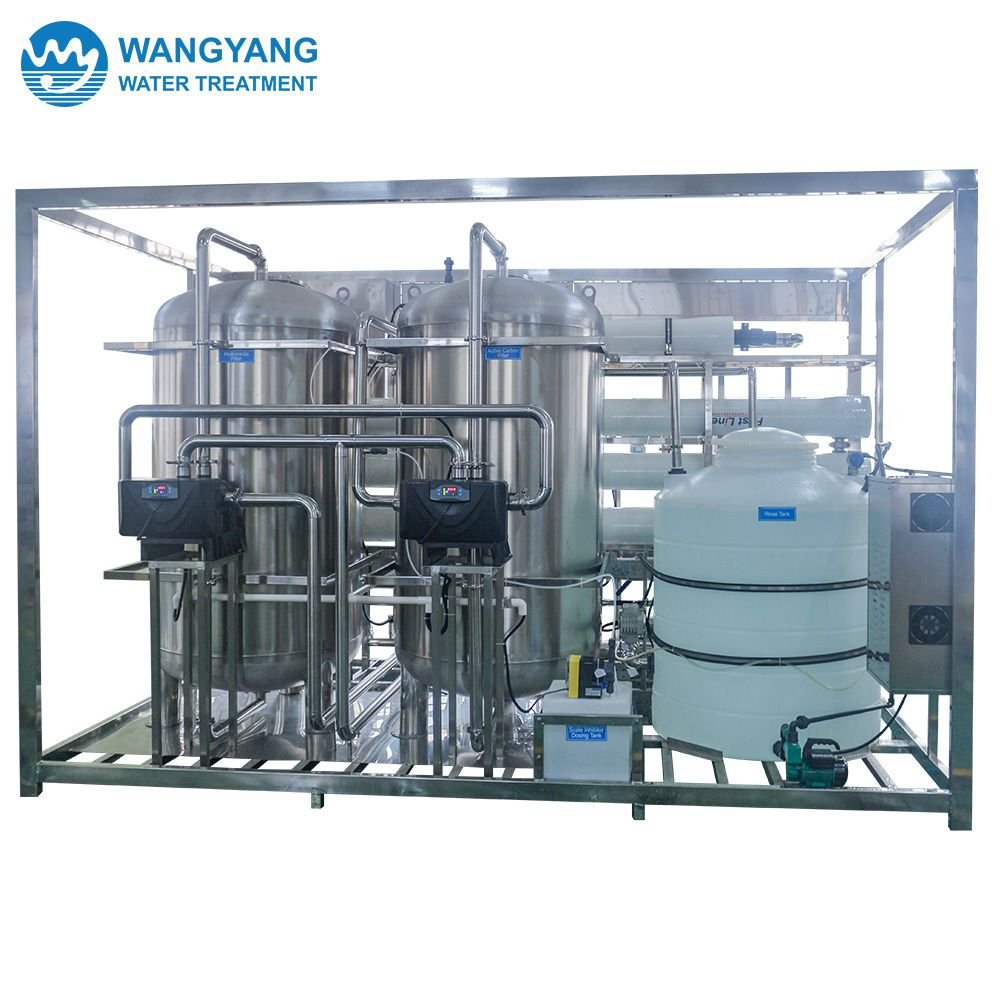

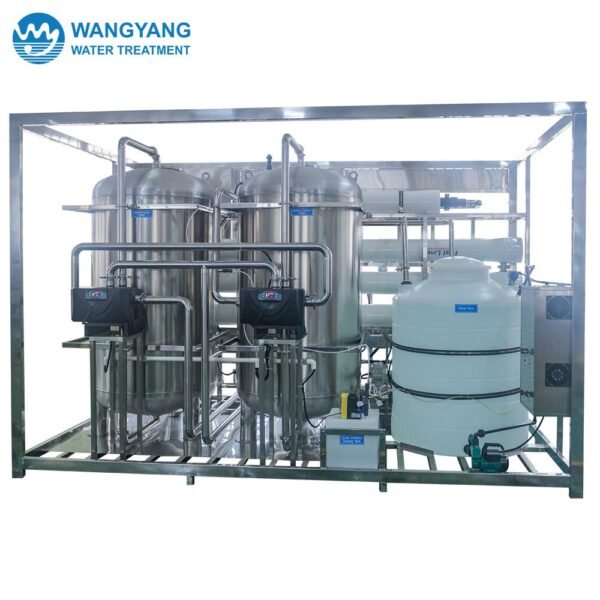

Component Photos

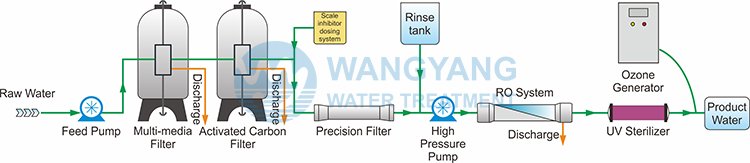

Process flow diagram
Main accessories
- Feed Pump: SUS316, NF brand
- Multi-media Filter: 1000x2250mm, SUS, 1pcs
- Activated carbon Filter: 1000x2250mm, SUS, 1pcs
- Precision Filter: 40″ x 5μm, FRP
- High Pressure Pump: SUS316, NF brand
- Reverse Osmosis Membrane: 8040, USA DOW/ TORAY/ HYDRANAUTICS brand
- Membrane Housing: 8040, 300PSI,3core, FRP, 3pcs

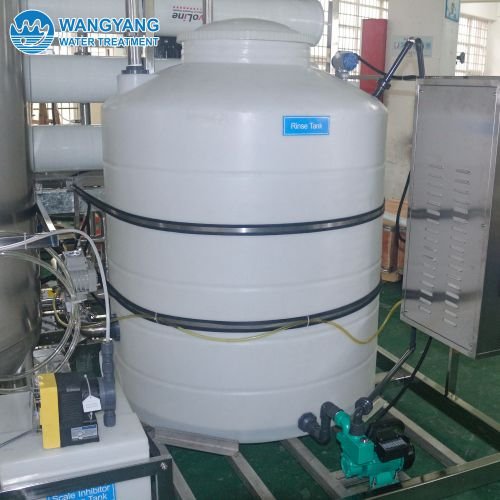

- Rinse tank: 1000L, PE
- Conductivity Meter: Createc

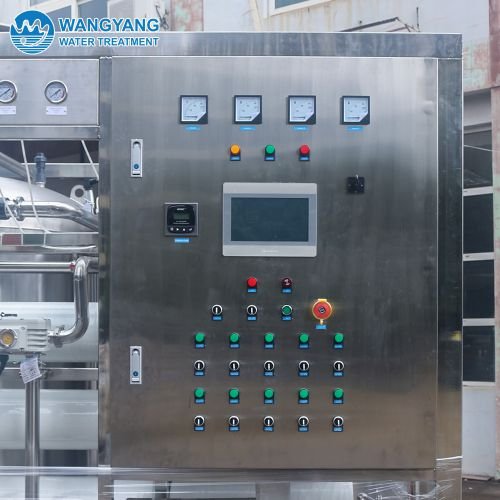

- Electric Element: Schneider brand or equivalent
Equipment list
- RO Water treatment equipment
- User manual, Operation video
- Final document (product certificate, factory test report, packing list, equipment drawing)
- Other consumables accessories
Features and advantages
- High quality high pressure pump with high operating efficiency, low energy consumption, low noise and long service life.
- High-quality reverse osmosis membrane with a salt rejection rate of 98.5%, strong anti-pollution ability and stable water quality.
- Rack piping and fittings are made of stainless steel and corrosion-resistant materials to ensure long-lasting equipment and low maintenance costs.
- The operation is simple and easy to use, and the maintenance is convenient. As long as there is electricity, there is sea water, and fresh water can be supplied immediately after the pipeline is started.
- Wide range of power supply: 220V~440V/50~60HZ.
- RO product water quality standard: in line with the bottled drinking pure water standard.
- Long service life: 15-20 years, rigorous process design to ensure long service life and low maintenance costs.
- The type of equipment combination can be realized: skid mounted, split combination type etc.
