Product description

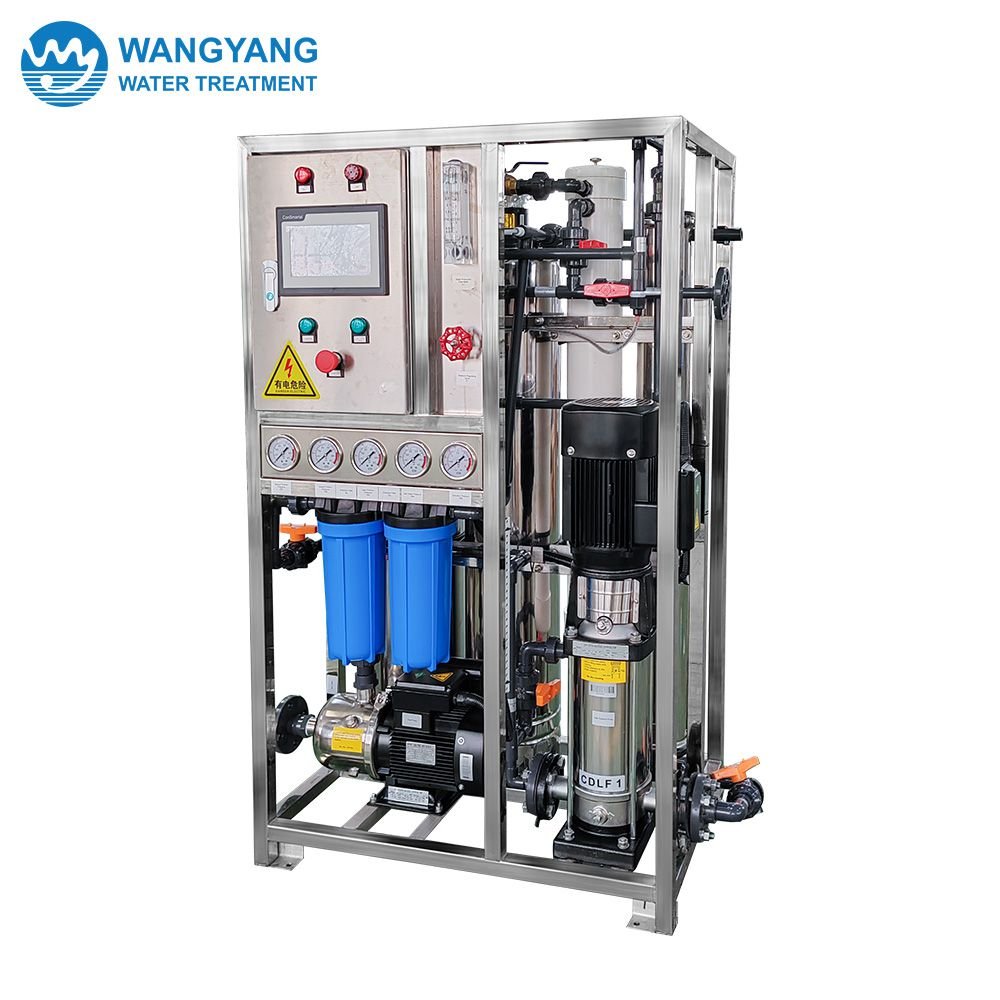

The 3TPD Pure Water Treatment Reverse Osmosis System WY-TW-3 is to desalinate tap water into drinking water. pure water series has won the favor of customers because of its high treatment capacity, small volume, exquisite and chic appearance, convenient installation and operation, etc.
The raw water passes through the pretreatment system of multi-media filter and activated carbon filter to remove particulate impurities, colloids and residual chlorine in the water, and then passes through the reverse osmosis system to remove bacteria, viruses and other microorganisms in the water and most of the heavy metal plasma that is harmful to the human body.
The key components adopt famous brand products, advanced technology, reliable quality, strong expansibility, reasonable structure, small footprint, high water utilization rate, low energy consumption, fully automatic operation and simple operation and maintenance.
Specifications
| Model | WY-TW-3 |
|---|---|
| Configuration | Single Pass RO |
| Water yield | 150 liters per hour |
| RO product water quality(TDS) | <10mg/L |
| Desalination rate | >99.5% |
| Recovery rate | 80% (Depending on temperature and inlet water quality) |
| Operation pressure | <3Mpa |
| Power | 2.25KW |
| Voltage | 220V / 60Hz / 1PH |
| Protection grade | IP54 |
| Reference Dimension | 800*500*1400mm |
| Frame Material | Stainless steel |
* 1. Equipment can be customized according to customer requirements.
System function
1. Low-pressure shutdown protection. When the pre-treatment water supply is insufficient and the high-pressure pump inlet pressure is lower than 0.05MPa, the protection action will be automatically stopped and an audible and visual alarm will be issued.
2. The pretreatment is equipped with a control multi-way valve, and the quartz sand filter and the activated carbon filter are cleaned under a certain pressure difference.
3. The reverse osmosis membrane cleaning system is equipped with physical cleaning, chemical cleaning and filling of the reverse osmosis membrane module.
4. Matching ultraviolet sterilizer to ensure water quality(option).

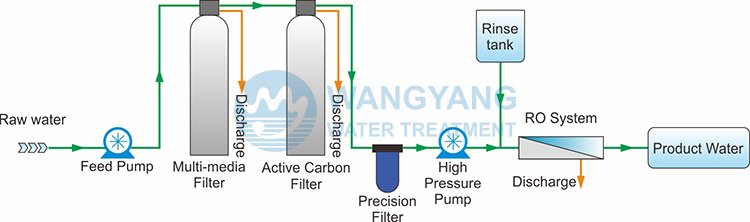

Process flow diagram

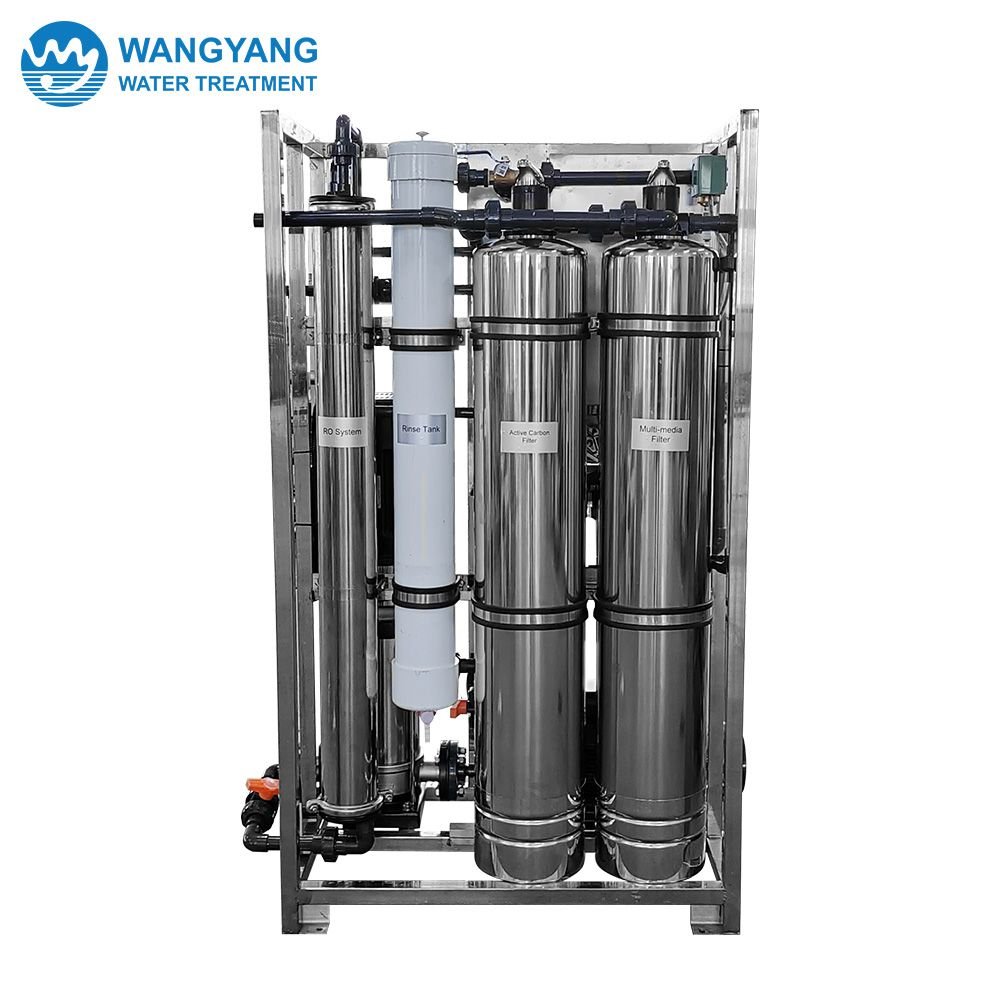

Main accessories
- Feed Pump: SUS316, NF brand
- Multi-media Filter: 200x1300mm, SUS304, 1pcs
- Activated Carbon Filter: 200x1300mm, SUS304, 1pcs
- Precision Filter: 10″ x 5μm, UPVC
- High Pressure Pump: SUS304, NF brand
- Reverse Osmosis Membrane: 4040, USA DOW/ TORAY/ HYDRANAUTICS brand
- Membrane Housing: 4040, 300PSI, SUS, 1pcs
- Rinse tank: 8L
- Conductivity Meter: Createc
- Electric Element: Schneider brand or equivalent
Equipment list
- RO Water treatment equipment
- User manual, Operation video
- Final document (product certificate, factory test report, packing list, equipment drawing)
- Other consumables accessories
Features and advantages
- High quality high pressure pump with high operating efficiency, low energy consumption, low noise and long service life.
- High-quality reverse osmosis membrane with a salt rejection rate of 98.5%, strong anti-pollution ability and stable water quality.
- Rack piping and fittings are made of stainless steel and corrosion-resistant materials to ensure long-lasting equipment and low maintenance costs.
- The operation is simple and easy to use, and the maintenance is convenient. As long as there is electricity, there is sea water, and fresh water can be supplied immediately after the pipeline is started.
- Wide range of power supply: 220V~440V/50~60HZ.
- RO product water quality standard: in line with the bottled drinking pure water standard.
- Long service life: 15-20 years, rigorous process design to ensure long service life and low maintenance costs.
- The type of equipment combination can be realized: skid mounted, split combination type etc.
