Product description

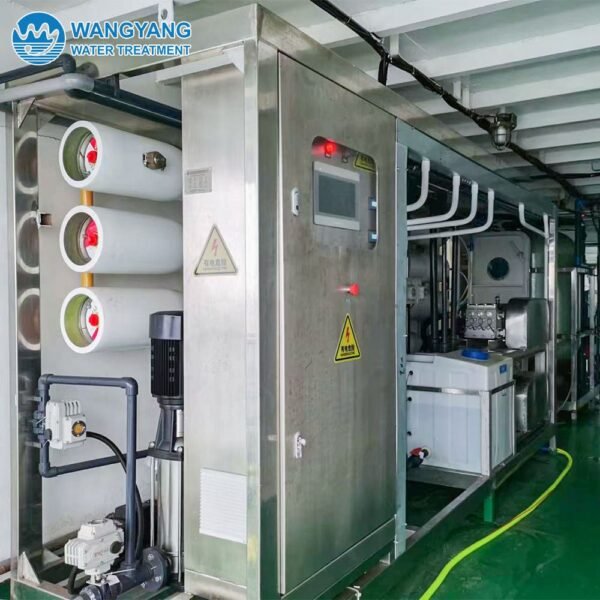

The 96TPD Double Pass RO Seawater Desalination System For Ship WY-FSHB-96-2 adopts the international advanced reverse osmosis technology and is designed by optimizing the system.
The system can effectively remove inorganic salts, heavy metal ions, organic bacteria, bacteria and other harmful components in seawater, and desalinate seawater into high-quality water in accordance with the pure water(TDS<10mg/L).
Scope of application: The fresh water produced is used to supply fresh water tanks, drinking water tanks, cooling water tanks, and distilled water tanks on board to meet the service requirements of domestic water and equipment water on board.
Project cases
Specifications
| Model | WY-FSHB-96-2 |
|---|---|
| Configuration | Double Pass RO |
| Water yield | 4,000 Litres per hour |
| 2nd RO product water quality(TDS) | <10mg/L |
| Desalination rate | >99.5% |
| Recovery rate | 45%(1st RO) / 90%(2nd RO) (Depending on temperature and inlet water quality) |
| Operation pressure | 3.5~5.5Mpa(1st RO) 0.5~1.5Mpa(2nd RO) |
| Power | 39.5KW |
| Voltage | AC380V / 50Hz / Three phase |
| Protection grade | IP54 |
| Frame Material | Stainless steel |
* 1. The amount of water produced refers to the amount of water produced under the conditions of an inlet water temperature of 25 ° C, a salt content of 35,000 mg/L, and an operating pressure of 5 MPa.
2. Equipment can be customized according to customer requirements.
System function
1. High-pressure unloading, when the high-pressure pump outlet pressure exceeds 6.2MPa, the equipment automatically stops and protects and emits an audible and visual alarm.
2. Low-pressure shutdown protection. When the pre-treatment water supply is insufficient and the high-pressure pump inlet pressure is lower than 0.05MPa, the protection action will be automatically stopped and an audible and visual alarm will be issued.
3. When the salt content of the fresh water exceeds the specified value, the unqualified fresh water is automatically discharged and an alarm signal is issued.
4. The pre-treatment is equipped with an automatic or a manual multi-way valve for large-flow backwashing and full washing.
5. Configure the reverse osmosis membrane cleaning system to physically clean, chemically clean and refill the reverse osmosis membrane module.
Process flow diagram
Main accessories
- Feed Pump: SUS316L, NF brand

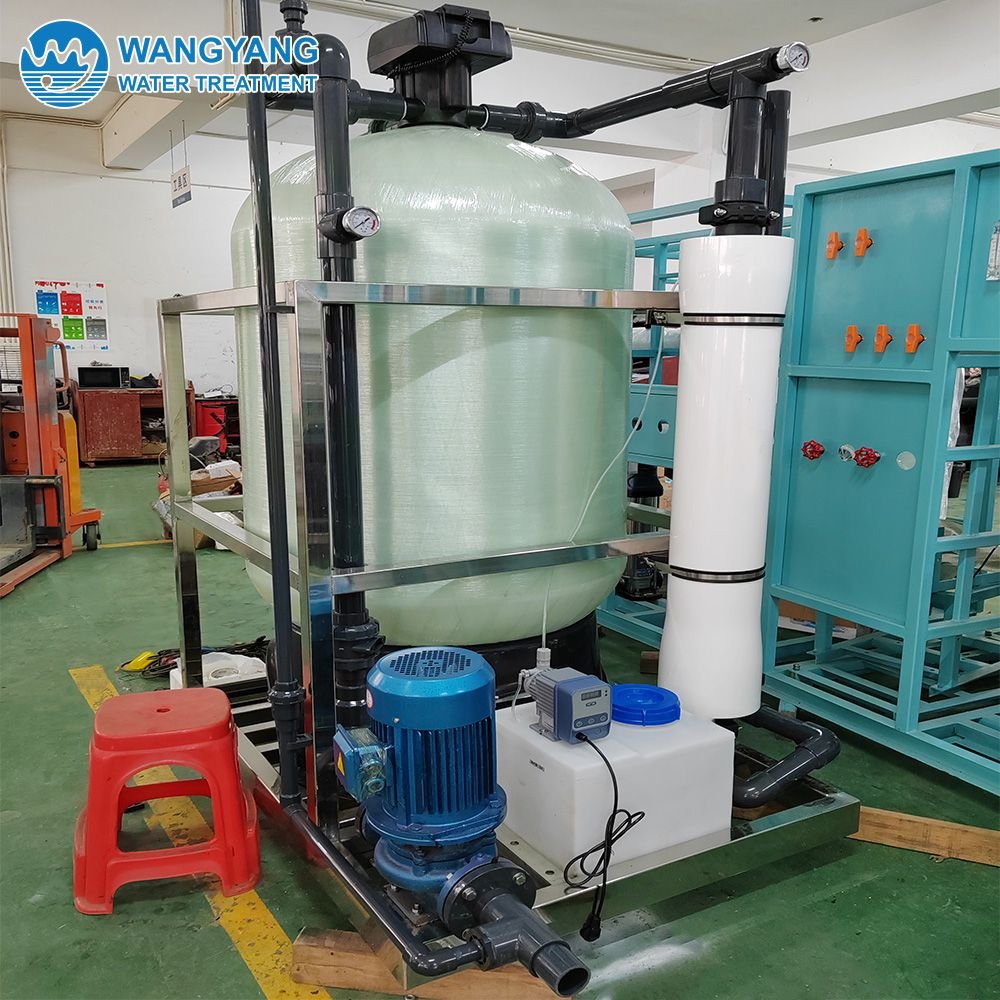

- Multimedia Filter: Ø1000x1900mm, FRP, 1pcs
- Precision Filter: 40″ x 5μm, FRP, 1pcs

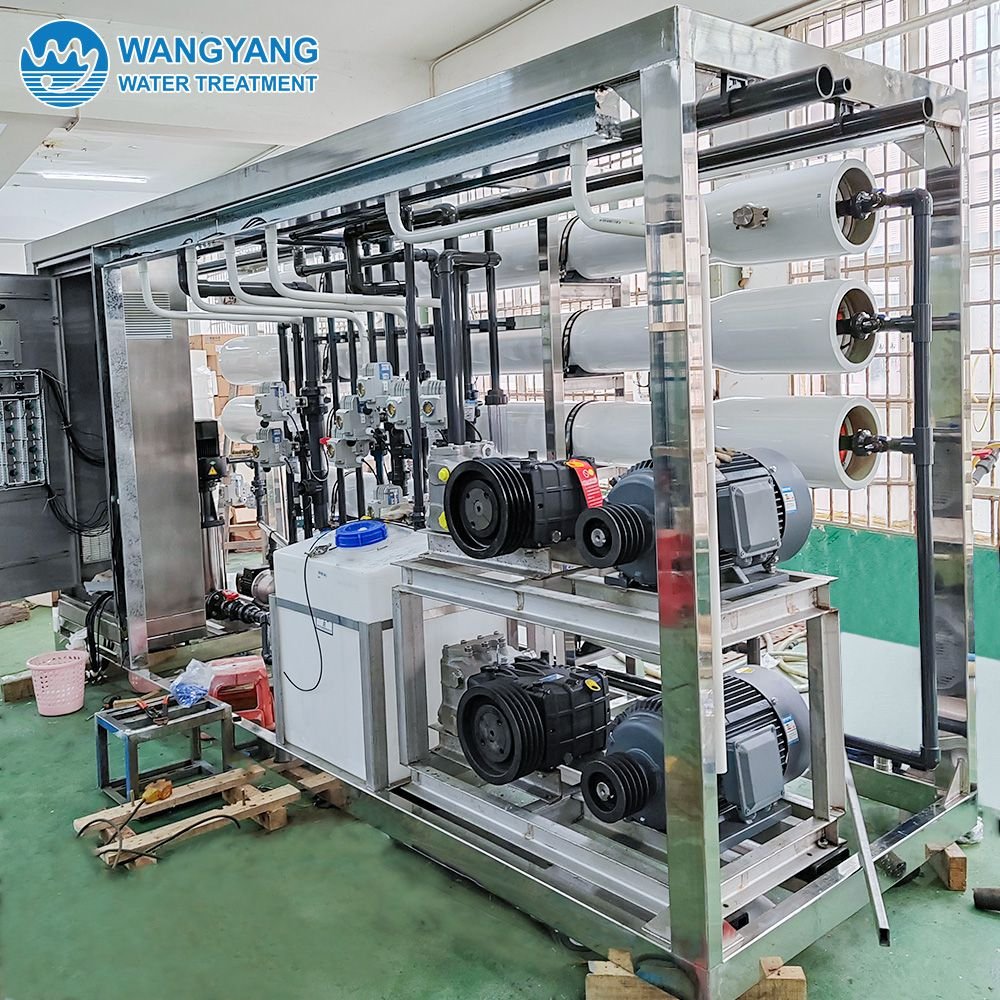

- 1st High Pressure Pump: SUS316L, PINFL brand
- 2nd High Pressure Pump: SUS304, NF brand
- Reverse Osmosis Membrane: USA DOW/ TORAY/ HYDRANAUTICS brand

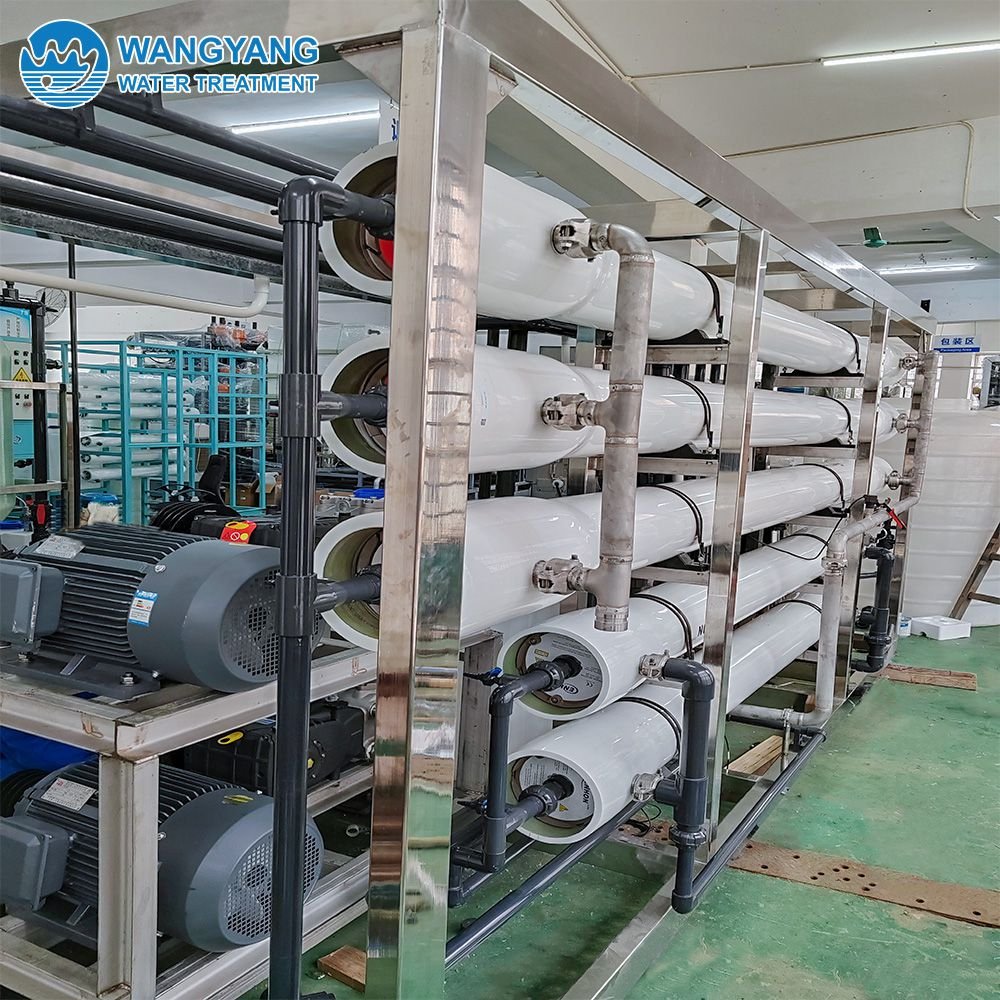

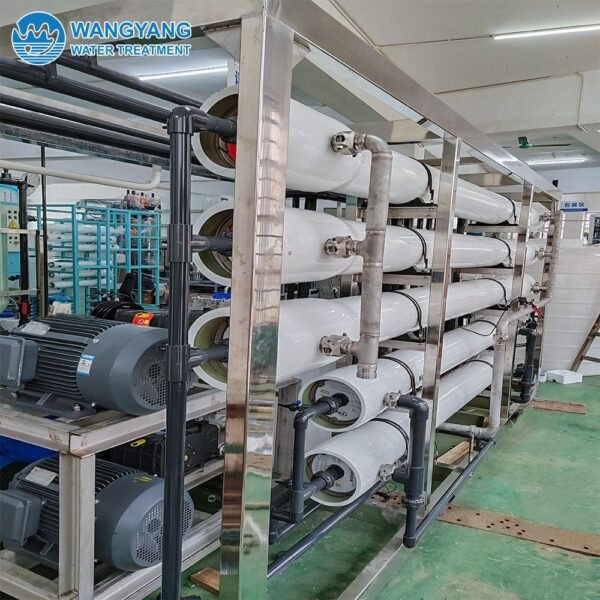

- Membrane Housing: 8040, 1000PSI(3core, 3pcs), 300PSI(2core, 2pcs), FRP
- Middle Water Tank: 1000L, PE
- CIP Chemical Cleaning Device: System matching
- Conductivity Meter: Createc

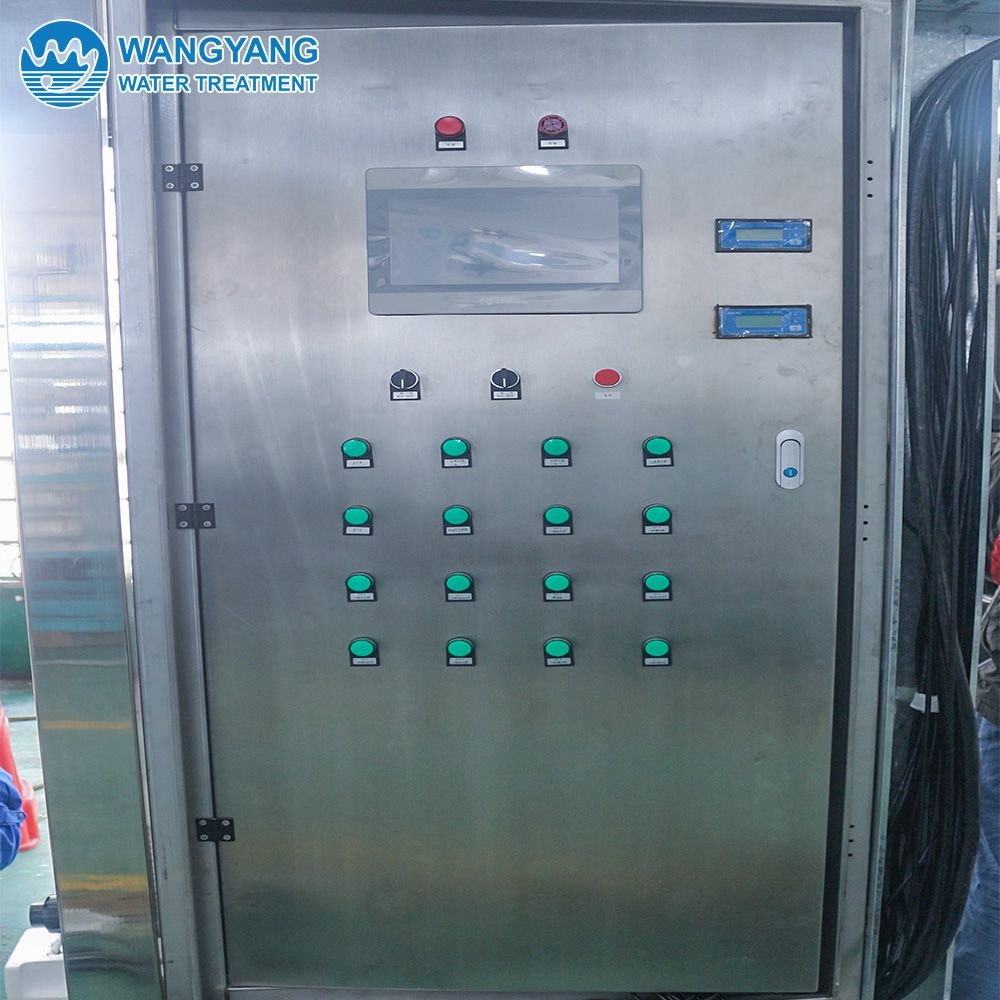

- Electric Element: Schneider brand or equivalent
Equipment list
- RO Water treatment equipment
- User manual, Operation video
- Final document (product certificate, factory test report, packing list, equipment drawing)
- Other consumables accessories
Features and advantages
- High quality imported high pressure pump with high operating efficiency, low energy consumption, low noise and long service life.
- High-quality reverse osmosis membrane with a salt rejection rate of 98.5%, strong anti-pollution ability and stable water quality.
- Rack piping and fittings are made of stainless steel and corrosion-resistant materials to ensure long-lasting equipment and low maintenance costs.
- The operation is simple and easy to use, and the maintenance is convenient. As long as there is electricity, there is sea water, and fresh water can be supplied immediately after the pipeline is started.
- Wide range of power supply: 220V~440V/50~60HZ.
- RO product water quality standard: in line with national drinking water standard .
- Long service life: 15-20 years, rigorous process design to ensure long service life and low maintenance costs.
- The type of equipment combination can be realized: skid mounted, split combination type etc.
