Product description
The Container Double RO Brackish Water Desalination System(1st RO 100tons, 2nd RO 10tons) is suitable for high salinity areas and seawater inversion areas, and is designed by an internationally advanced reverse osmosis technology.
The brackish water double ro system is integrated in a standard container, which is not only convenient for transportation and export, but also for hoisting and placing on site and quickly put into use, and it is also very convenient in operation and management.
The system can effectively remove inorganic salts, heavy metal ions, organic bacteria, bacteria and other harmful components in brackish water, and desalinate brackish water into high-quality water in accordance with the pure water(TDS<10mg/L).
The equipment is debugging before leaving the factory, only need to access the external pipeline and power supply to the site, and can produce water after starting, and the equipment has high desalting rate, stable performance, safety and reliability.
Specifications
| Model | WY-BW-100+10 |
|---|---|
| Configuration | Double Pass RO |
| 1st RO water production | 4170 liters per hour |
| 2nd RO water production | 417 liters per hour |
| 1st RO product water quality(TDS) | <500mg/L |
| 2nd RO product water quality(TDS) | <10mg/L |
| Desalination rate | >99.5% |
| Recovery rate | 50% (Depending on temperature and inlet water quality) |
| Operation pressure | 1.5~3.5Mpa(1st RO) 0.5~1.5Mpa(2nd RO) |
| Power | 16.5KW |
| Voltage | 380V / 50Hz / 3PH |
| Protection grade | IP54 |
| Reference Dimension | 20GP container |
| Frame Material | Stainless steel |
* 1. The amount of water produced refers to the amount of water produced under the conditions of an inlet water temperature of 25 ° C, a salt content of 20,000 mg/L(Max), and an operating pressure of 2.5 MPa.
2. Equipment can be customized according to customer requirements.
System function
1. Low-pressure shutdown protection. When the pre-treatment water supply is insufficient and the high-pressure pump inlet pressure is lower than 0.05MPa, the protection action will be automatically stopped and an audible and visual alarm will be issued.
2. The pretreatment is equipped with a control multi-way valve, and the quartz sand filter and the activated carbon filter are cleaned under a certain pressure difference.
3. The reverse osmosis membrane cleaning system is equipped with physical cleaning, chemical cleaning and filling of the reverse osmosis membrane module.
4. Matching ultraviolet sterilizer to ensure water quality(option).

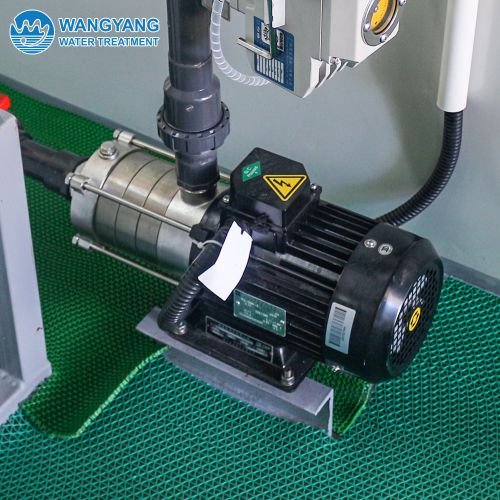

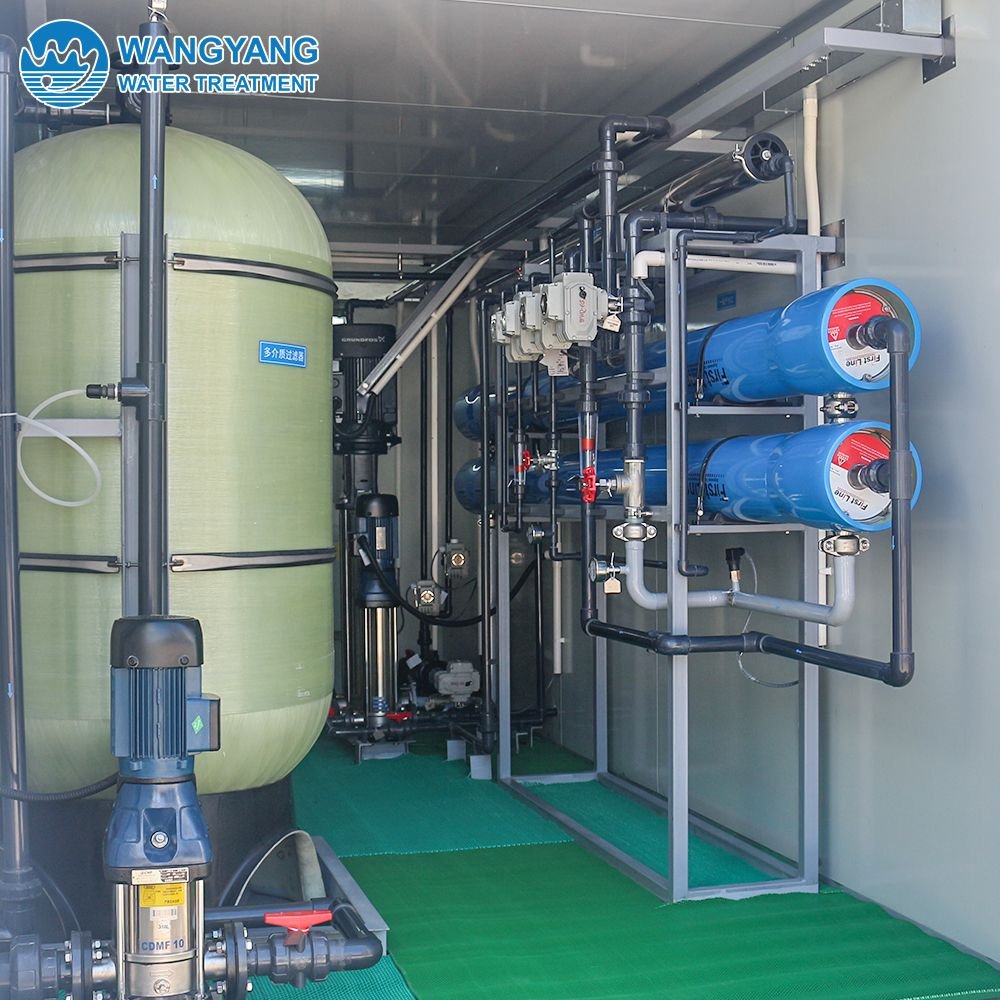

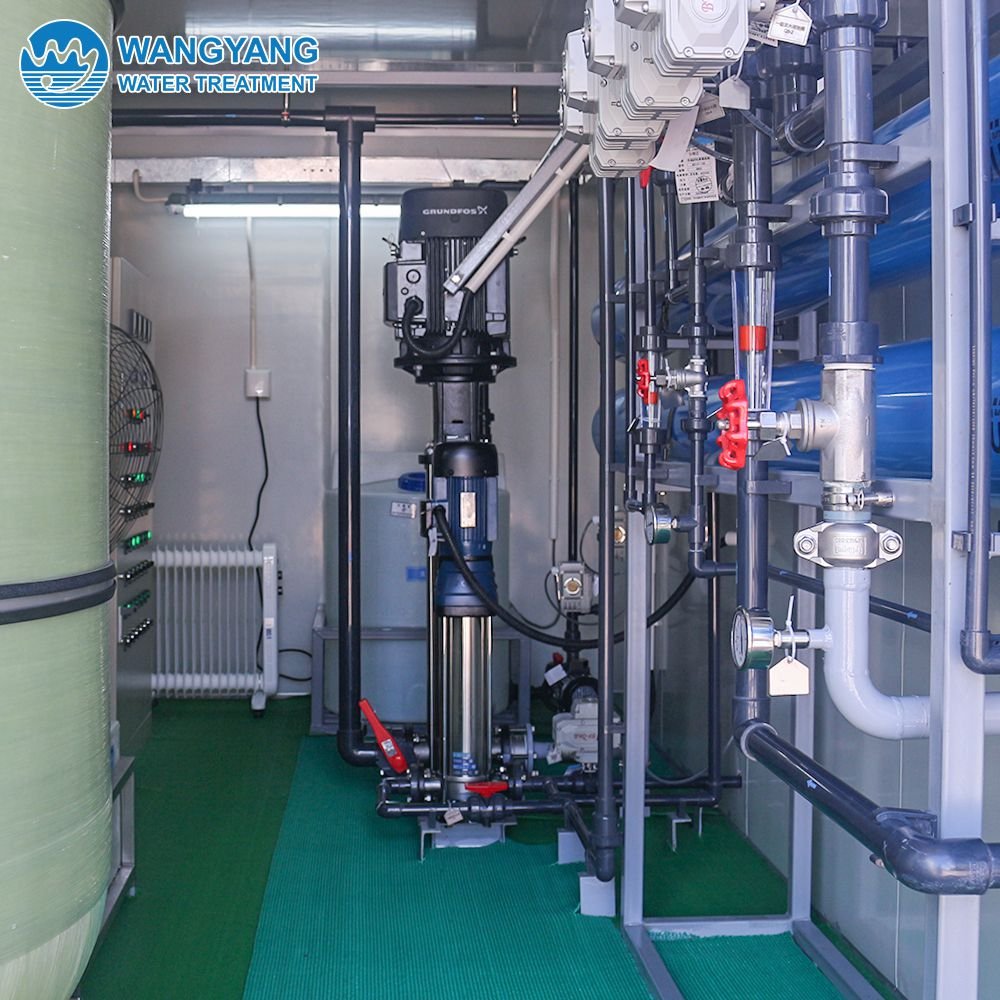

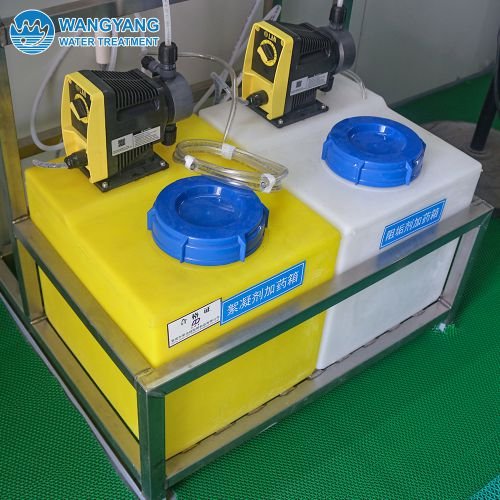

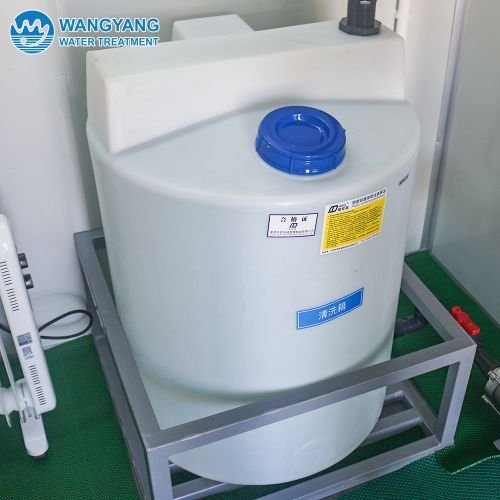

Component Photos

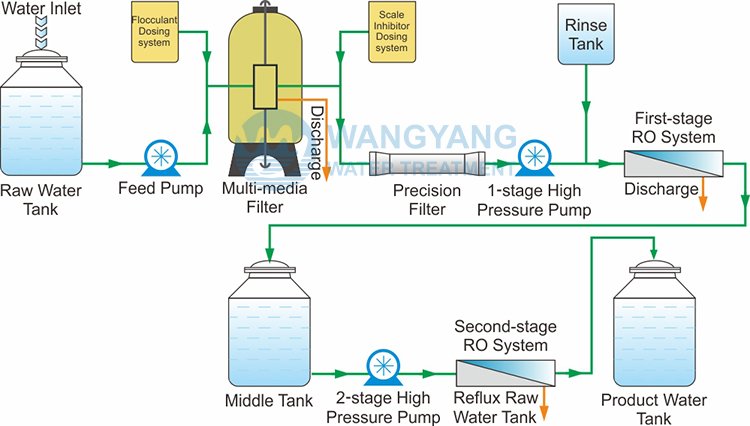

Process flow diagram
Main accessories
- Feed Pump: SUS316, NF brand

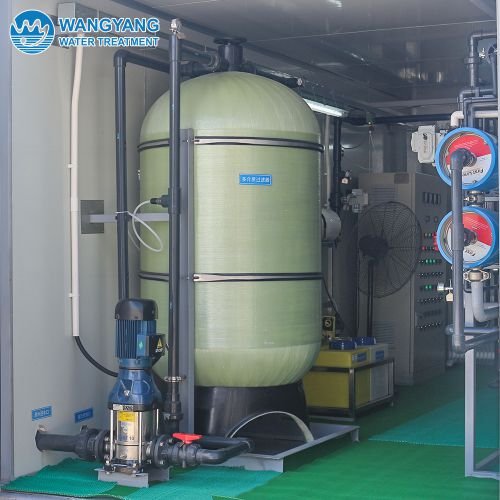

- Multi-media Filter: 900x1950mm, FRP, 1pcs

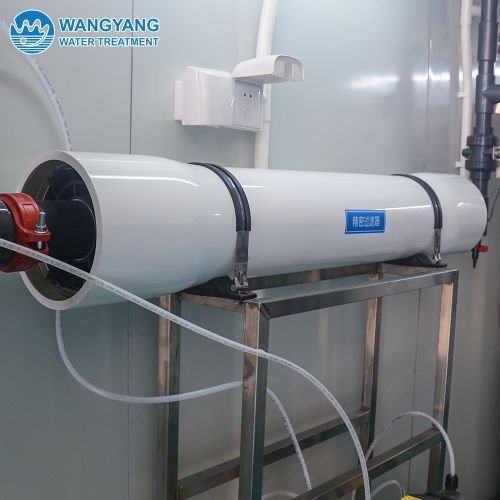

- Precision Filter: 40″ x 5μm, FRP

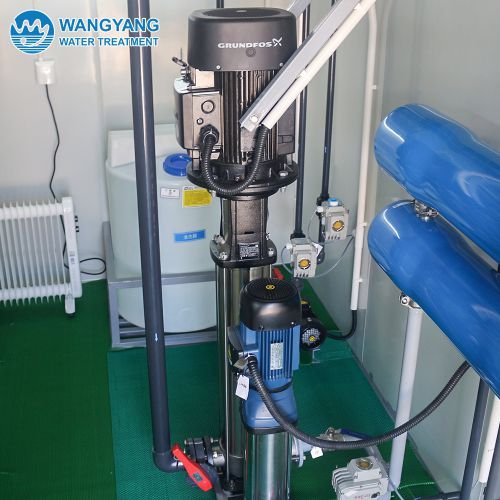

- 1st High Pressure Pump: SUS316, NF brand
- 2nd High Pressure Pump: SUS304, NF brand

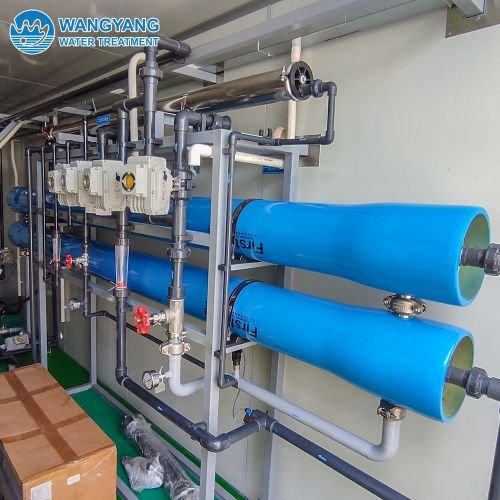

- Reverse Osmosis Membrane: 8040, 4040,USA DOW/ TORAY/ HYDRANAUTICS brand
- Membrane Housing: 8040, 450PSI(3core,2ps), 4040, 300PSI(1core,2ps), FRP
- CIP: System matching
- Conductivity Meter: Createc

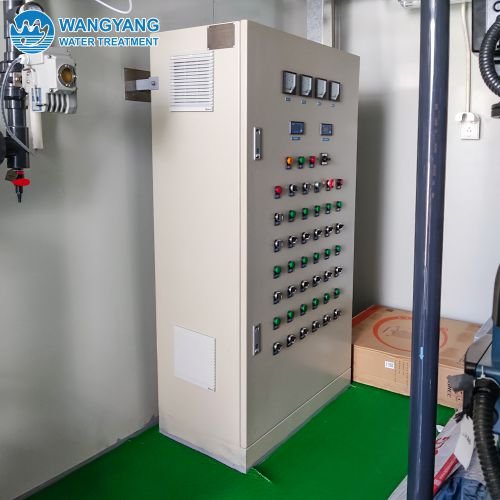

- Electric Element: Schneider brand or equivalent
Equipment list
- RO Water treatment equipment
- User manual, Operation video
- Final document (product certificate, factory test report, packing list, equipment drawing)
- Other consumables accessories

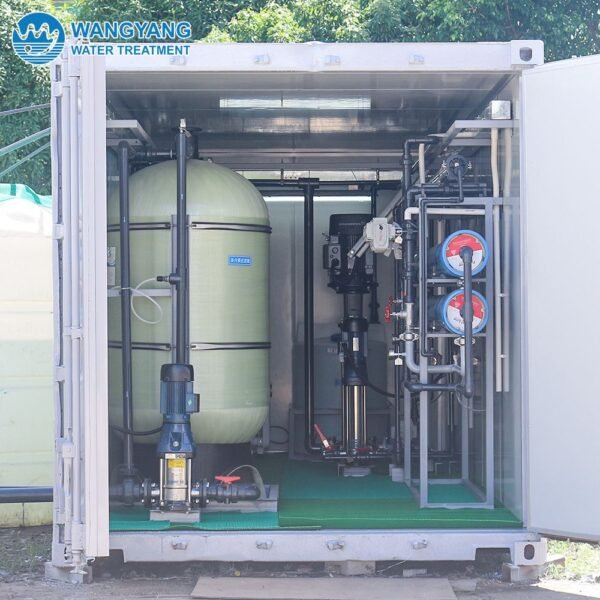

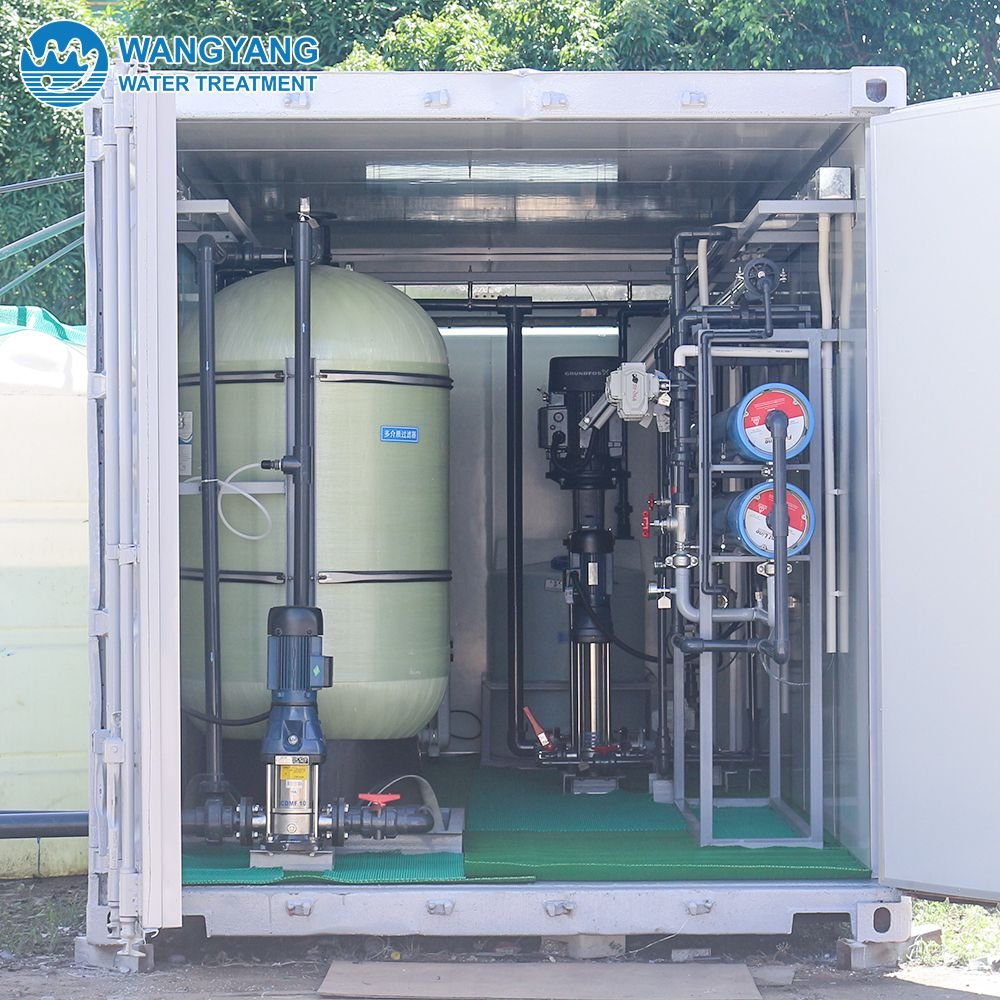

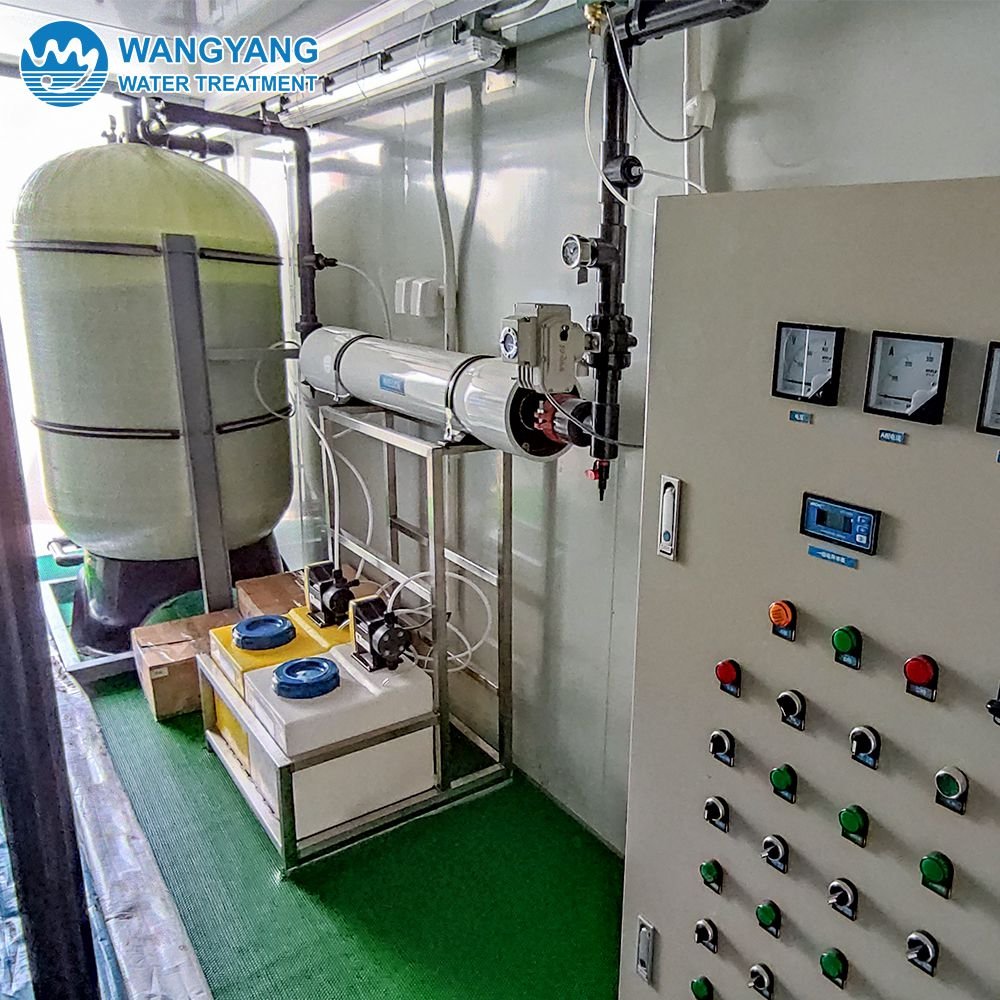

Container Installation Process
Features and advantages
- High quality high pressure pump with high operating efficiency, low energy consumption, low noise and long service life.
- High-quality reverse osmosis membrane with a salt rejection rate of 98.5%, strong anti-pollution ability and stable water quality.
- Rack piping and fittings are made of stainless steel and corrosion-resistant materials to ensure long-lasting equipment and low maintenance costs.
- The operation is simple and easy to use, and the maintenance is convenient. As long as there is electricity, there is sea water, and fresh water can be supplied immediately after the pipeline is started.
- Wide range of power supply: 220V~440V/50~60HZ.
- RO product water quality standard: in line with national drinking water standard .
- Long service life: 15-20 years, rigorous process design to ensure long service life and low maintenance costs.
- The type of equipment combination can be realized: container type, skid mounted, split combination type etc.
