Product description
480 tons of softened water and 48 tons of 2-stage pure water double pass ro system adopt softening treatment and reverse osmosis process to produce fresh water, which has the advantages of high water quality, stable water quality and low energy consumption.
After the raw water is treated by the water treatment system, the TDS is less than 2mg / L, the softening water production is 20 tons / hour, and the pure water production is 2 tons / hour.
Scope of application:
Water for hospital disinfection and supply room (all kinds of cleaning machines, cleaning vehicles, ultrasonic cleaning, high-pressure sterilization equipment); preparation and dispensing water container cleaning water for hospital pharmacy and supply department.
Specifications
| Model | WY-RH-480+TW-48-2 |
|---|---|
| Configuration | Double Pass RO |
| Water yield | Softened water: 20m3 per hour RO Pure water: 2m3 per hour |
| RO product water quality(TDS) | <2mg/L |
| Desalination rate | >99.5% |
| Recovery rate | 65%(1st RO) & 85%(2nd RO) (Depending on temperature and inlet water quality) |
| RO operation pressure | 0.5~1.5Mpa |
| Power | 9.3KW |
| Voltage | 380V / 50Hz / 3PH |
| Protection grade | IP54 |
| Reference Dimension | Factory style |
* 1. Equipment can be customized according to customer requirements.
System function
1. Low-pressure shutdown protection. When the pre-treatment water supply is insufficient and the high-pressure pump inlet pressure is lower than 0.05MPa, the protection action will be automatically stopped and an audible and visual alarm will be issued.
2. The pretreatment is equipped with an automatic control multi-way valve, and the quartz sand filter and the activated carbon filter are cleaned under a certain pressure difference.
3. The reverse osmosis membrane cleaning system is equipped with physical cleaning, chemical cleaning and filling of the reverse osmosis membrane module.
4. Matching ultraviolet sterilizer to ensure water quality.(Option)

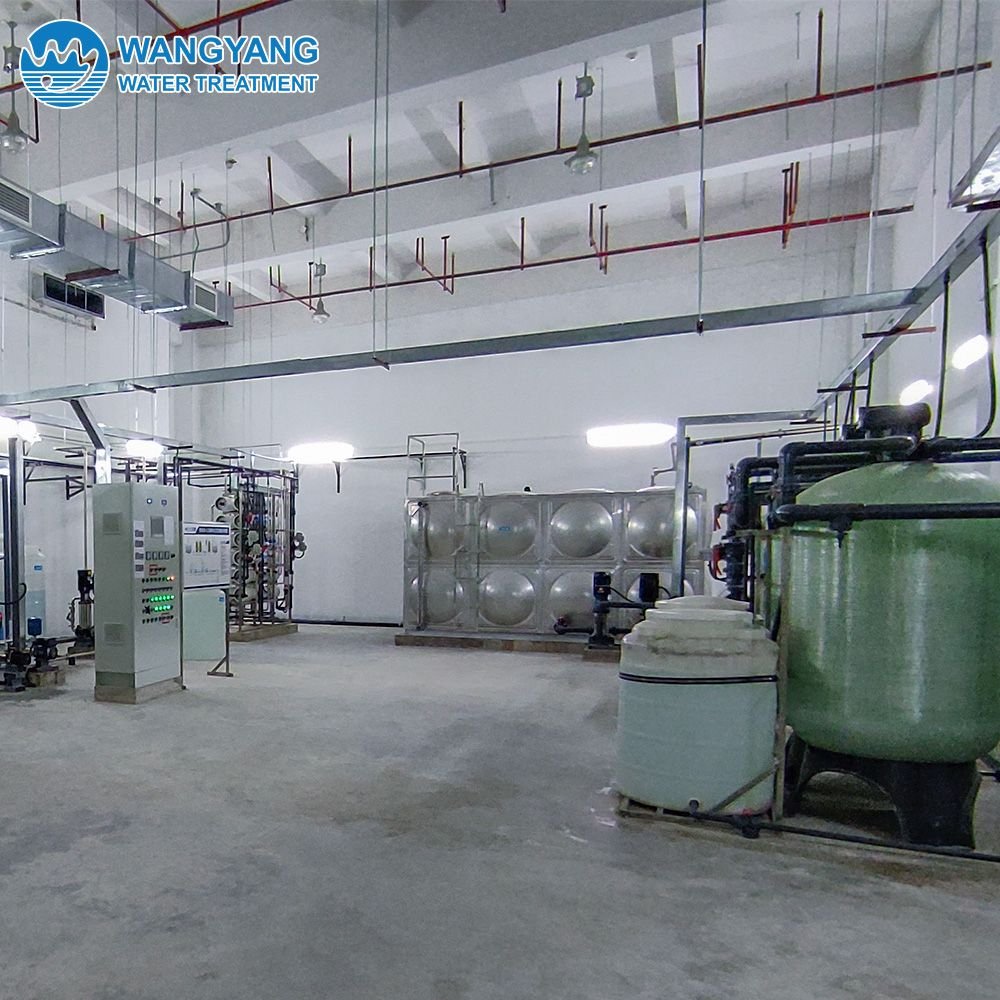

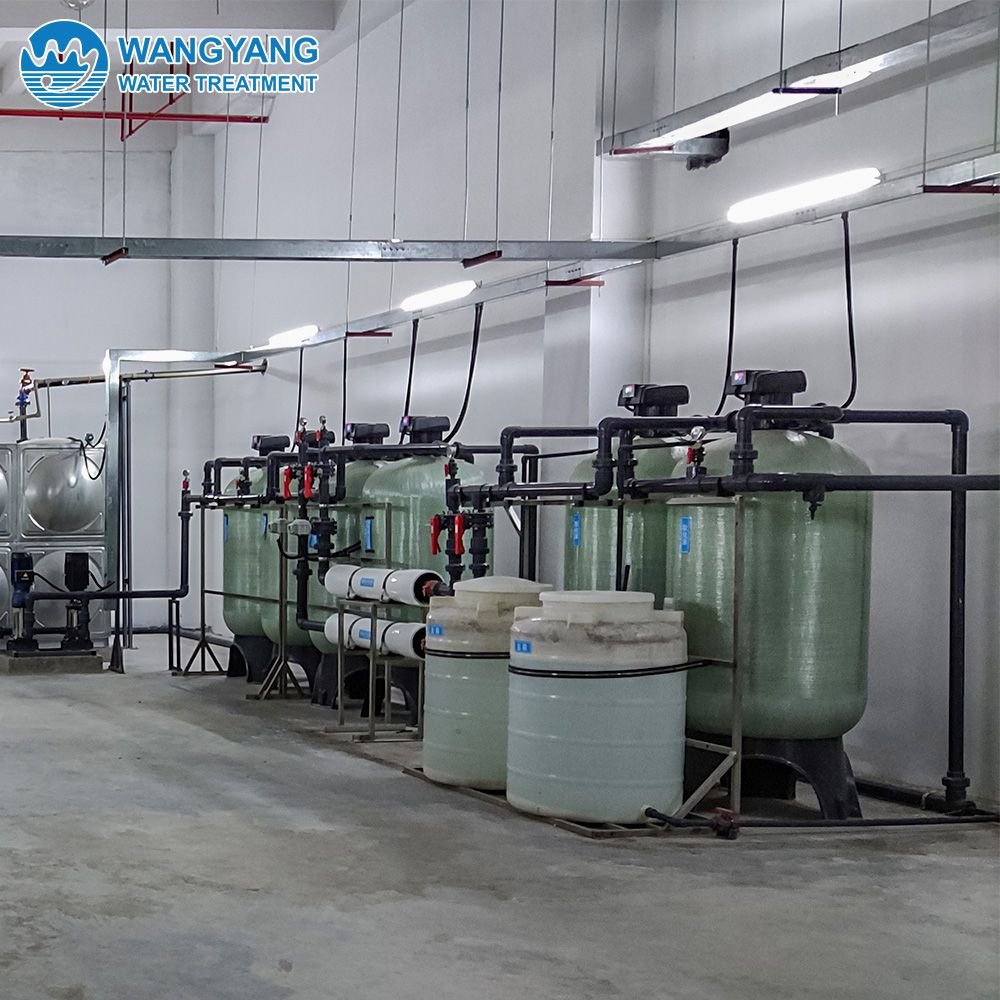

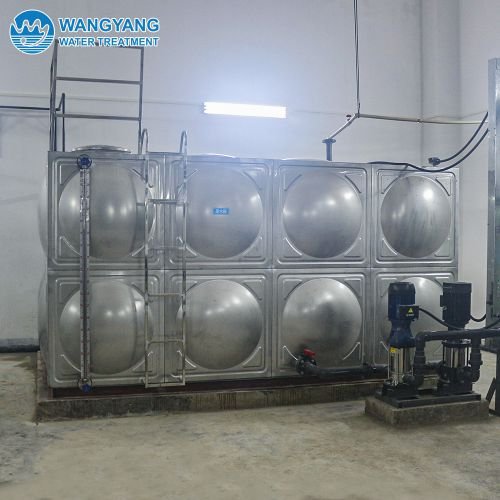

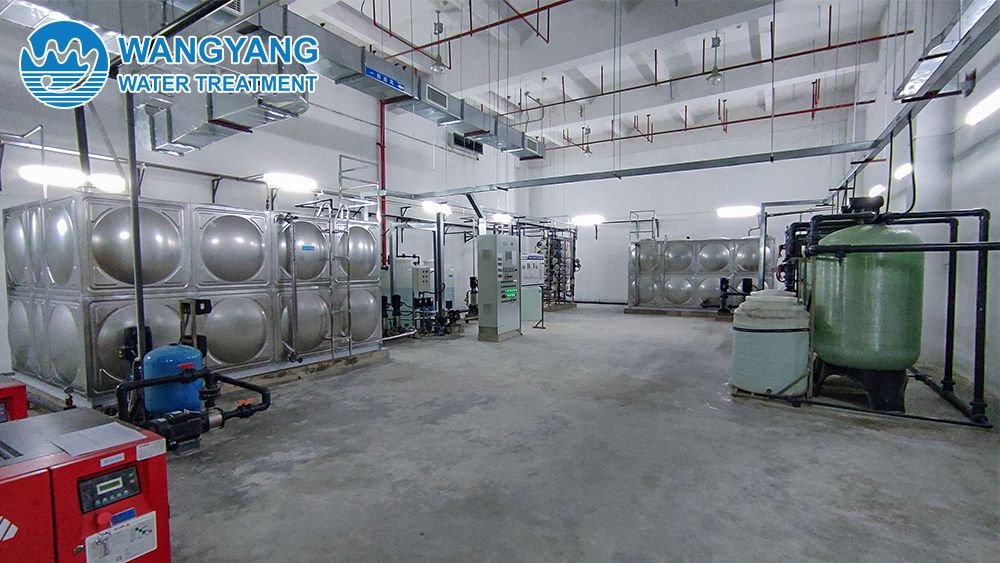

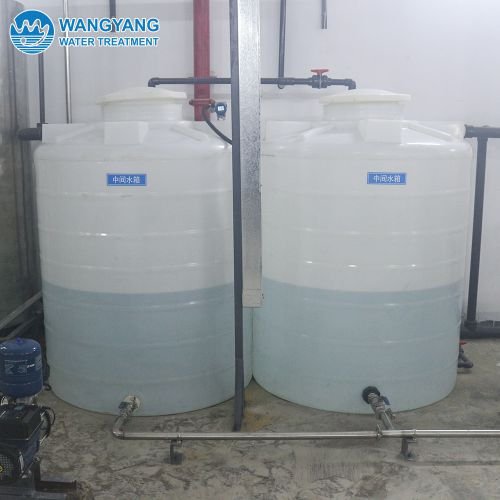

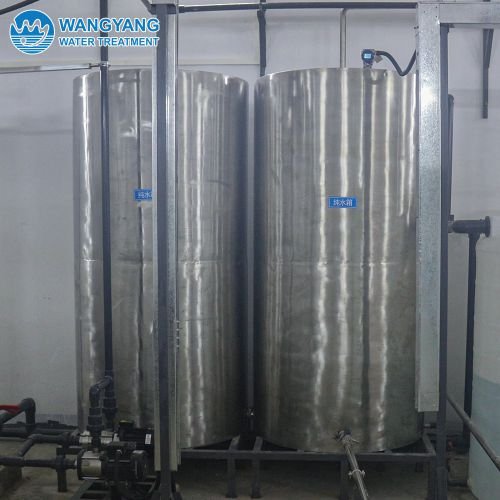

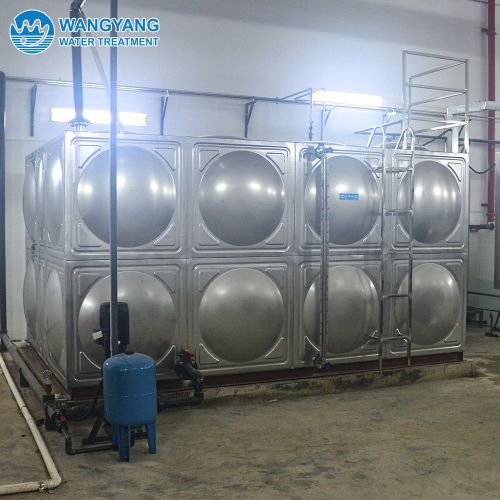

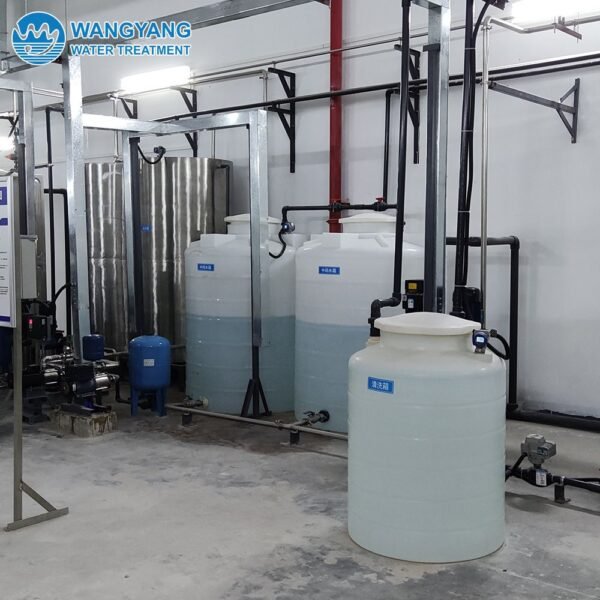

Component Photos

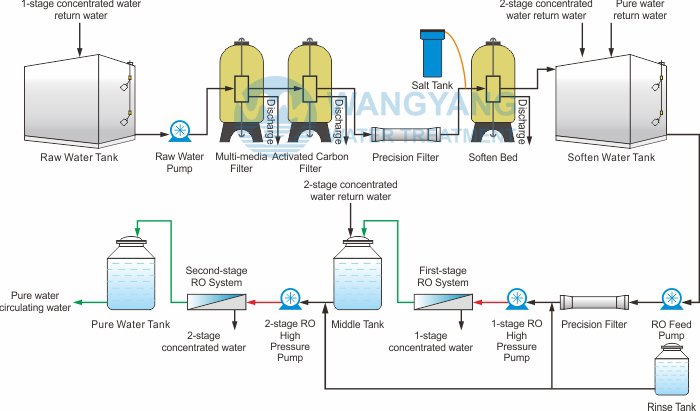

Process flow diagram
Main accessories
- Feed Pump: SUS316, NF brand

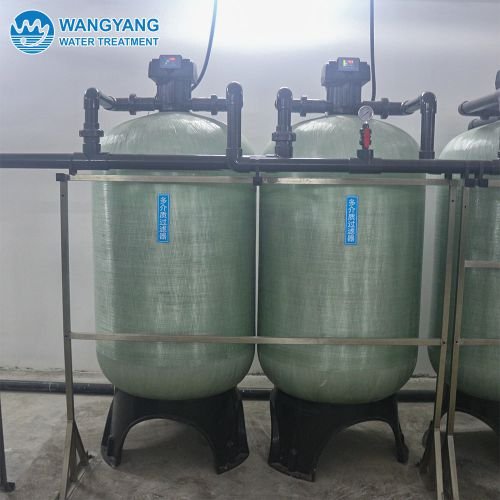

- Multi-media Filter: 900x1900mm, FRP, 2pcs

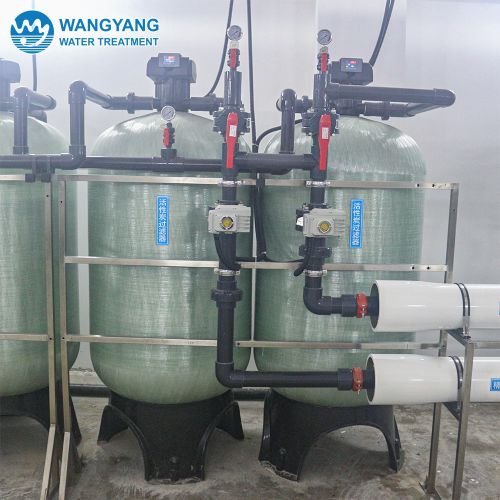

- Activated Carbon Filter: 900x1900mm, FRP, 2pcs

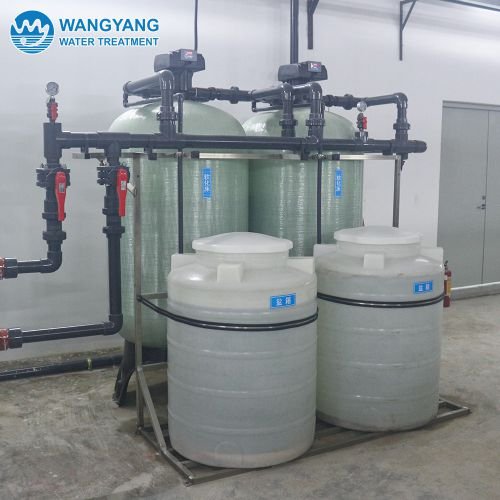

- Soften Bed: 900x1900mm, FRP, 2pcs

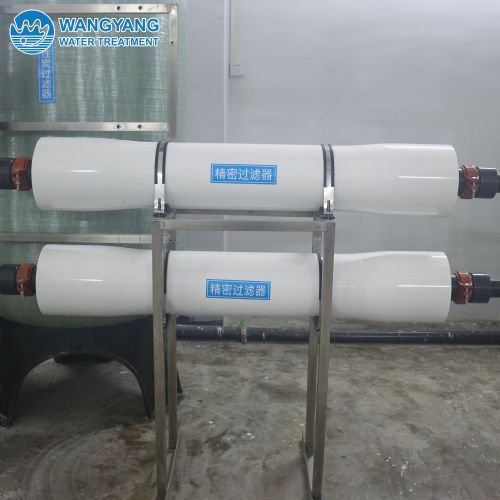

- Precision Filter: 40″ x 5μm, FRP

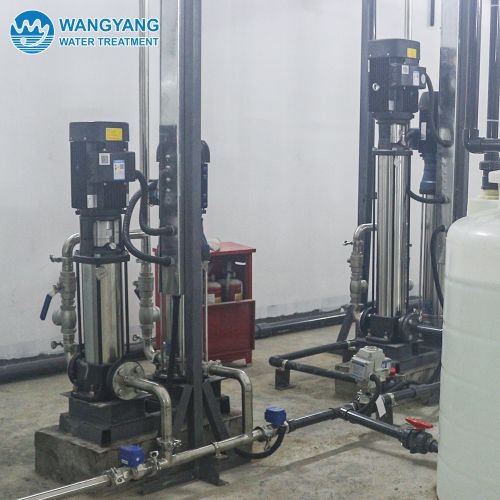

- 1st High Pressure Pump: SUS304, NF brand
- 2nd High Pressure Pump: SUS304, NF brand
- Reverse Osmosis Membrane: 8040, USA DOW/ TORAY/ HYDRANAUTICS brand

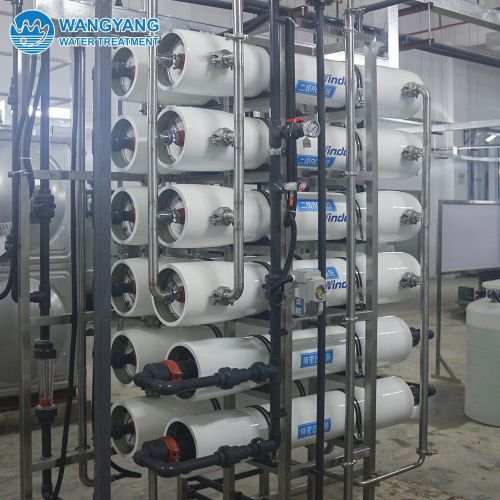

- 1st Membrane Housing: 8040, 450PSI,1core, FRP, 6pcs
- 2nd Membrane Housing: 8040, 300PSI,1core, FRP, 4pcs

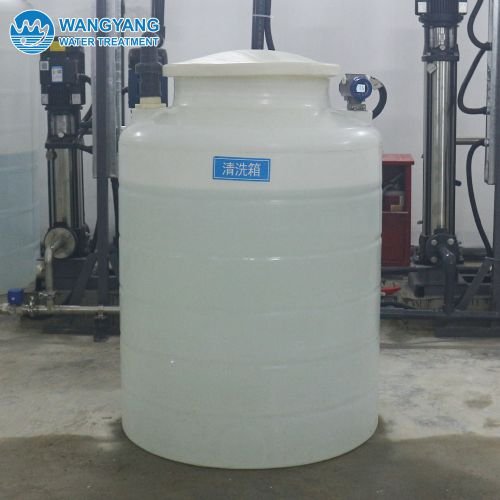

- Rinse tank: 240L, PE
- Conductivity Meter: Createc

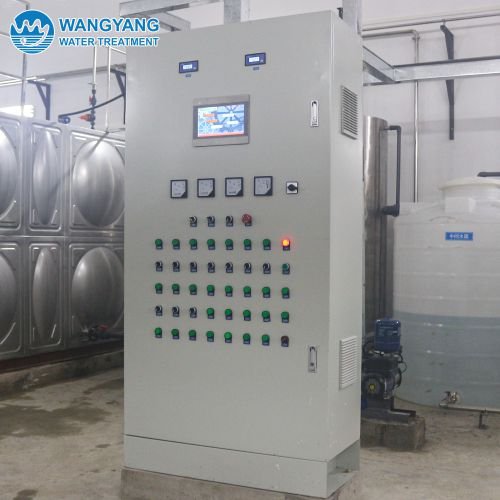

- Electric Element: Schneider brand or equivalent
Equipment list

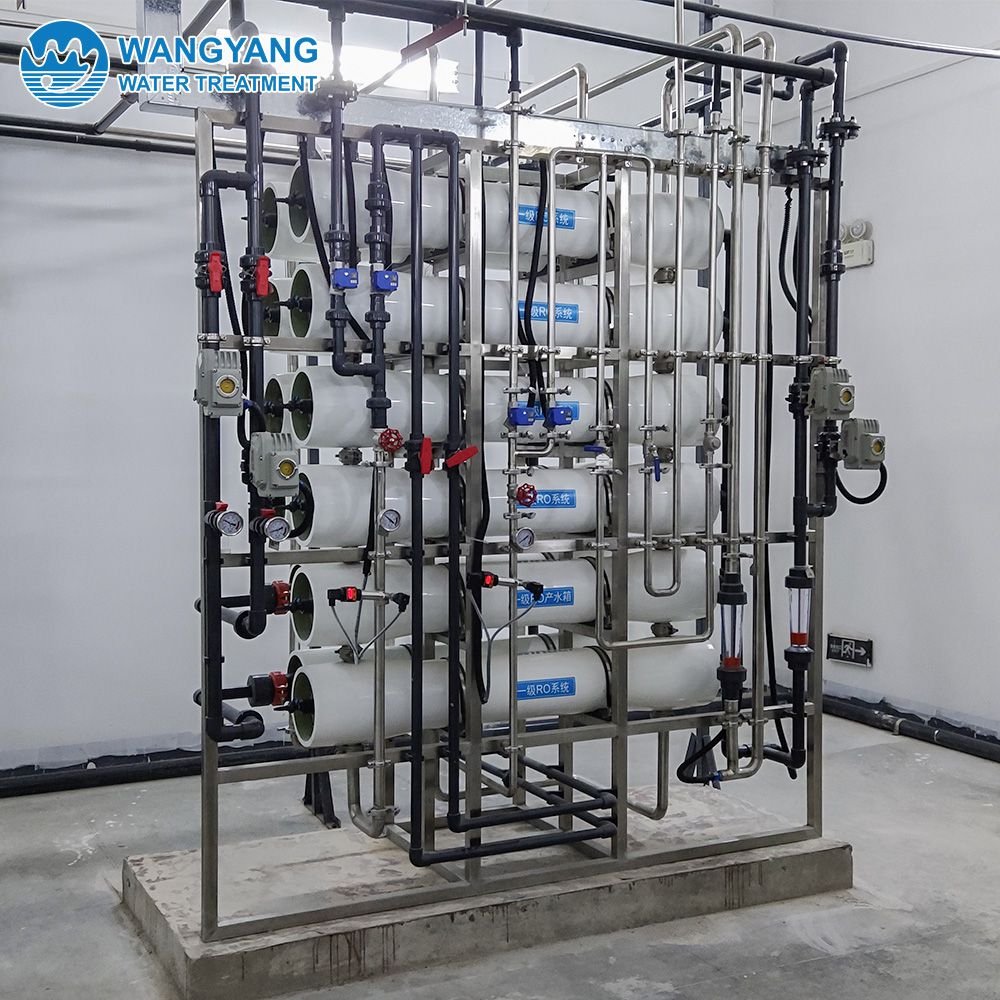

- RO Water treatment equipment
- User manual, Operation video
- Final document (product certificate, factory test report, packing list, equipment drawing)
- Other consumables accessories
Features and advantages
- High quality high pressure pump with high operating efficiency, low energy consumption, low noise and long service life.
- High-quality reverse osmosis membrane with a salt rejection rate of 98.5%, strong anti-pollution ability and stable water quality.
- Rack piping and fittings are made of stainless steel and corrosion-resistant materials to ensure long-lasting equipment and low maintenance costs.
- The operation is simple and easy to use, and the maintenance is convenient. As long as there is electricity, there is sea water, and fresh water can be supplied immediately after the pipeline is started.
- Wide range of power supply: 220V~440V/50~60HZ.
- RO product water quality standard: in line with the bottled drinking pure water standard.
- Long service life: 15-20 years, rigorous process design to ensure long service life and low maintenance costs.
- The type of equipment combination can be realized: skid mounted, split combination type etc.
