Product description
The solar power seawater desalination system adopts reverse osmosis technology, optimized system design, and integrated into the container.
Suitable for areas with abundant solar energy resources, islands, residential areas, and coastal water scarce cities.
The system can effectively remove inorganic salts, heavy metal ions, organic bacteria, bacteria and other harmful components in seawater, and desalinate seawater into high-quality water in accordance with the National drinking Water Sanitation Standard.
The whole system is equipped with advanced flow meter, pressure control instrument and safety pressure relief device, and is equipped with advanced detection and monitoring system to ensure stable operation of the system and high quality water production. When the water quality exceeds the warning salinity value, the system automatically opens and drains. Valves, which direct the production of water into the waste water line) and provide accurate values for the operation of the system.
System function
1. High-pressure unloading, when the high-pressure pump outlet pressure exceeds 6.2MPa, the equipment automatically stops and protects and emits an audible and visual alarm.
2. Low-pressure shutdown protection. When the pre-treatment water supply is insufficient and the high-pressure pump inlet pressure is lower than 0.05MPa, the protection action will be automatically stopped and an audible and visual alarm will be issued.

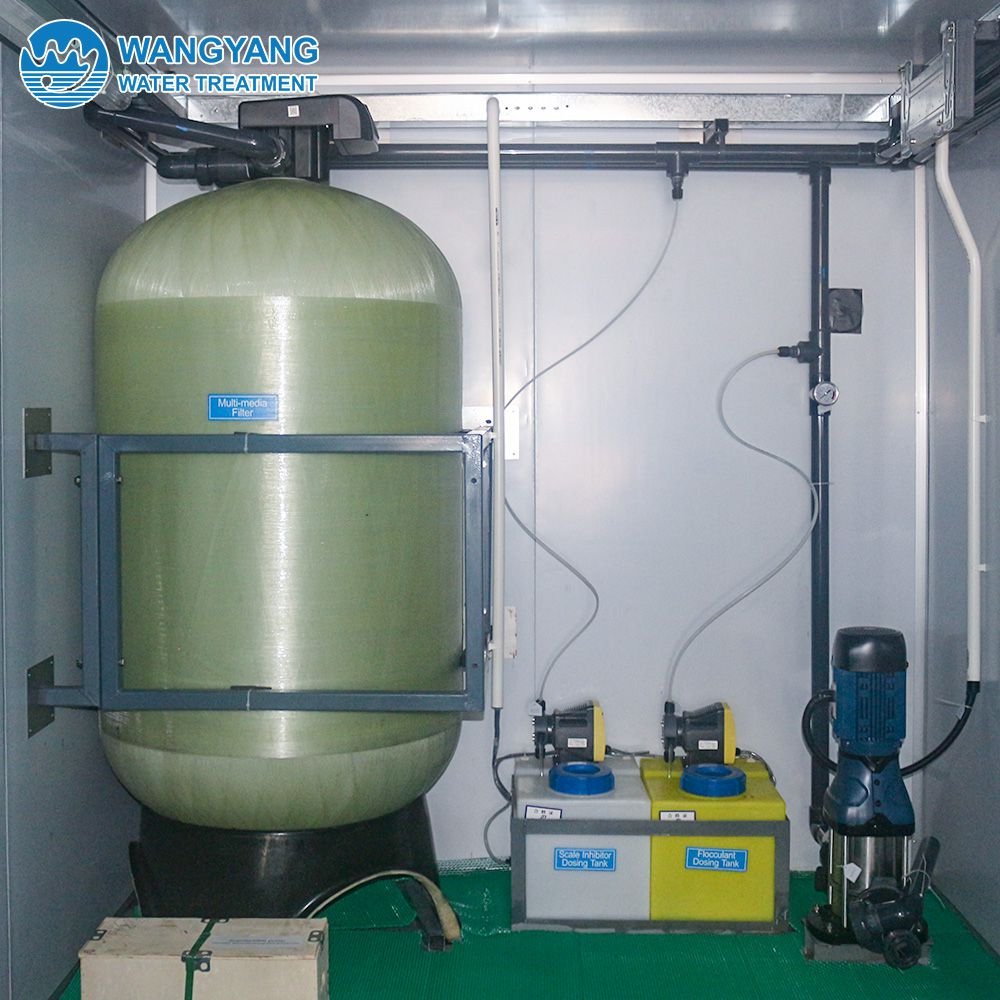

3. The pre-treatment is equipped with an automatic multi-way valve for large-flow backwashing and full washing.
4. Configure the reverse osmosis membrane cleaning system to physically clean, chemically clean and refill the reverse osmosis membrane module.

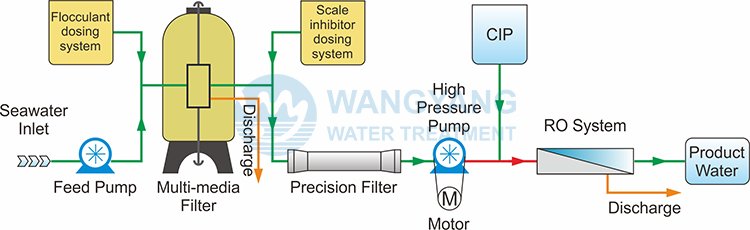

Process flow diagram
Equipment list
- RO Water treatment equipment
- User manual, Operation video
- Final document (product certificate, factory test report, packing list, equipment drawing)
- Other consumables accessories

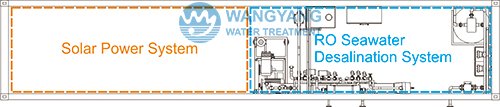

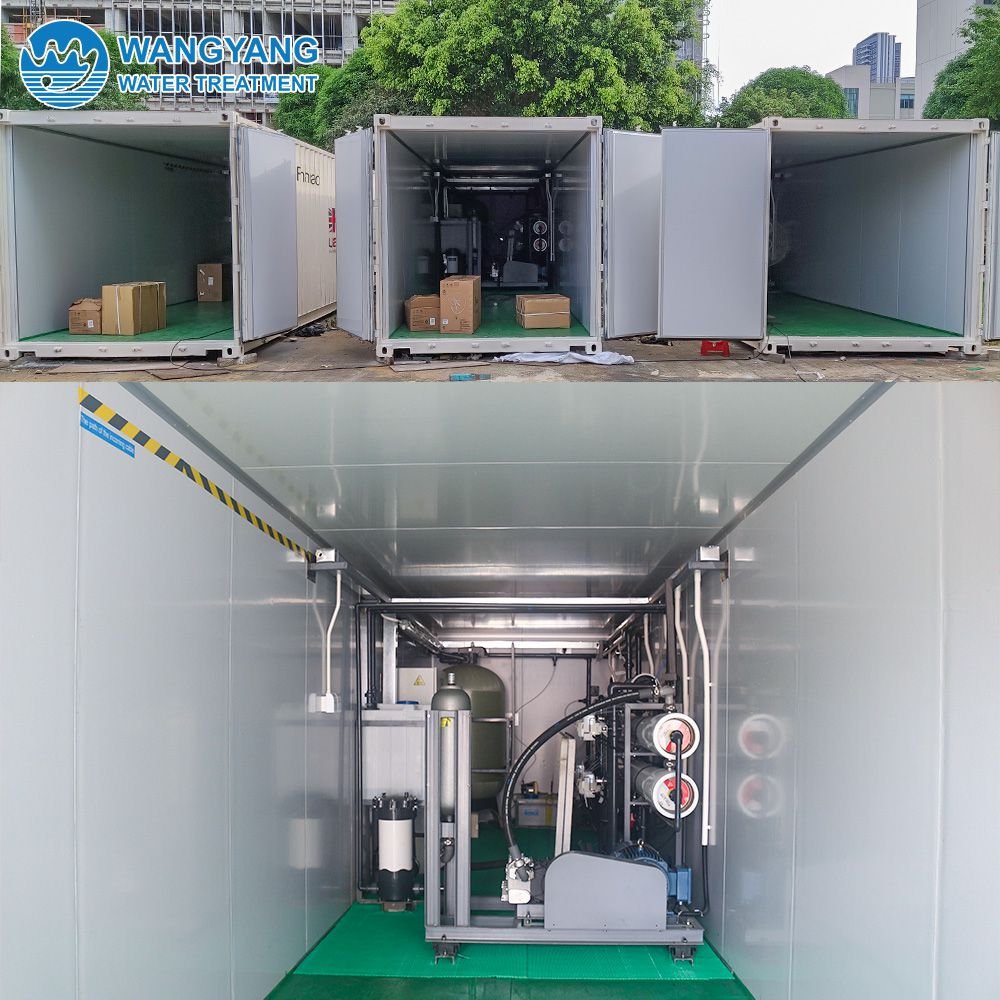

Container Installation Process
Features and advantages

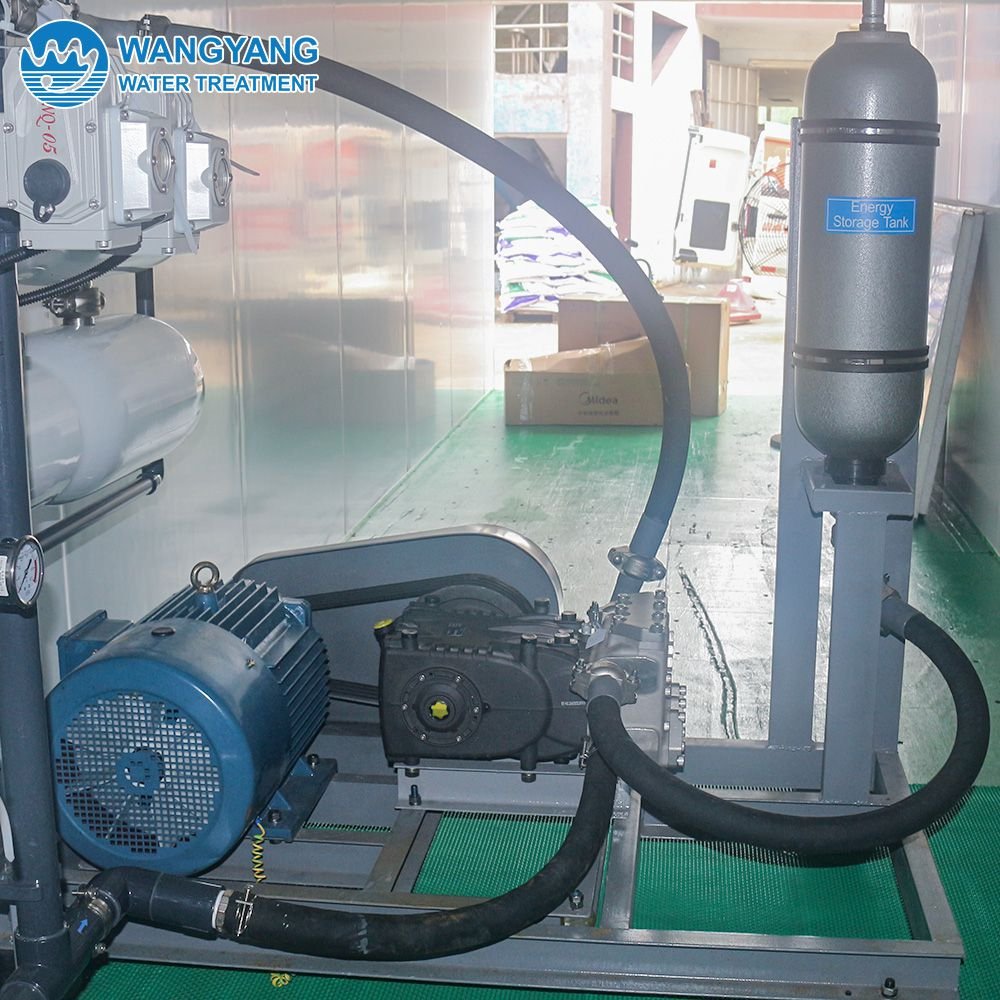

- High quality imported high pressure pump with high operating efficiency, low energy consumption, low noise and long service life.
- High-quality reverse osmosis membrane with a salt rejection rate of 98.5%, strong anti-pollution ability and stable water quality.
- Rack piping and fittings are made of stainless steel and corrosion-resistant materials to ensure long-lasting equipment and low maintenance costs.
- The operation is simple and easy to use, and the maintenance is convenient. As long as there is electricity, there is sea water, and fresh water can be supplied immediately after the pipeline is started.
- Wide range of power supply: 220V~440V/50~60HZ.
- RO product water quality standard: in line with national drinking water standard .
- Long service life: 15-20 years, rigorous process design to ensure long service life and low maintenance costs.
- The type of equipment combination can be realized: skid mounted, split combination type etc.
