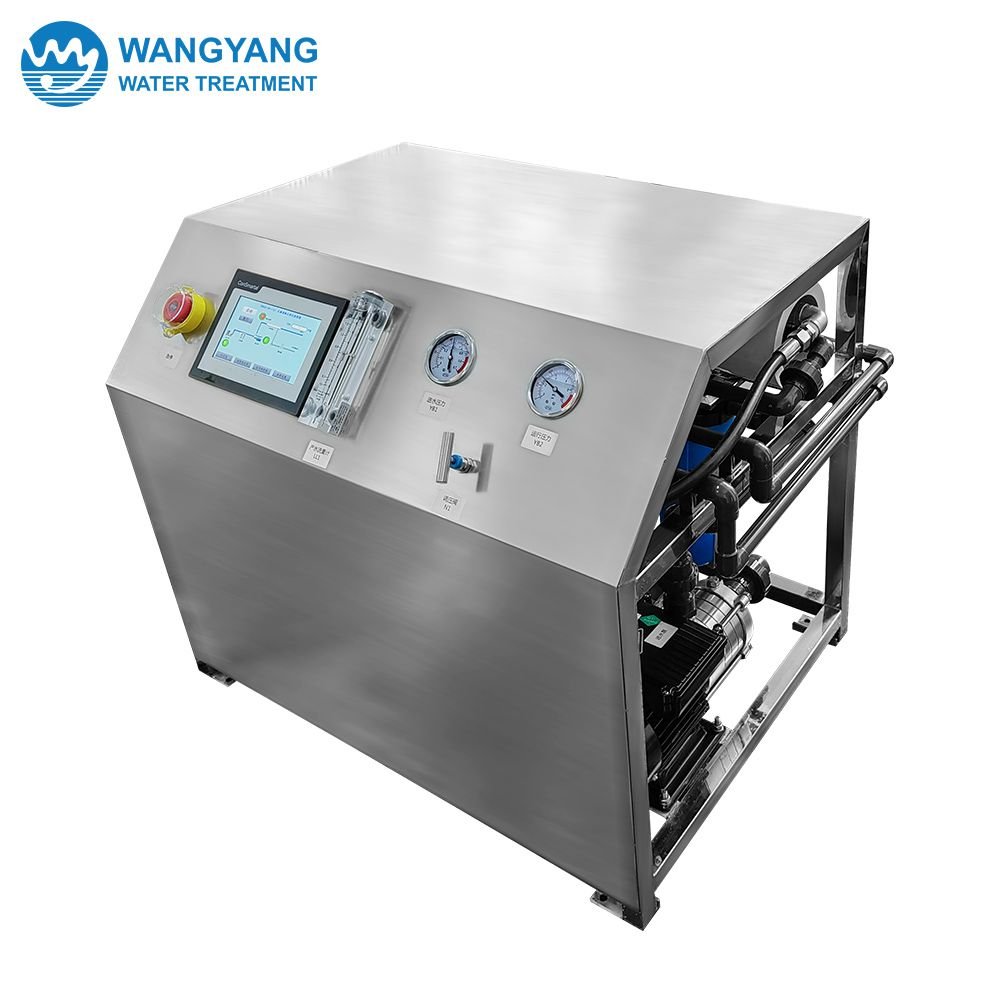

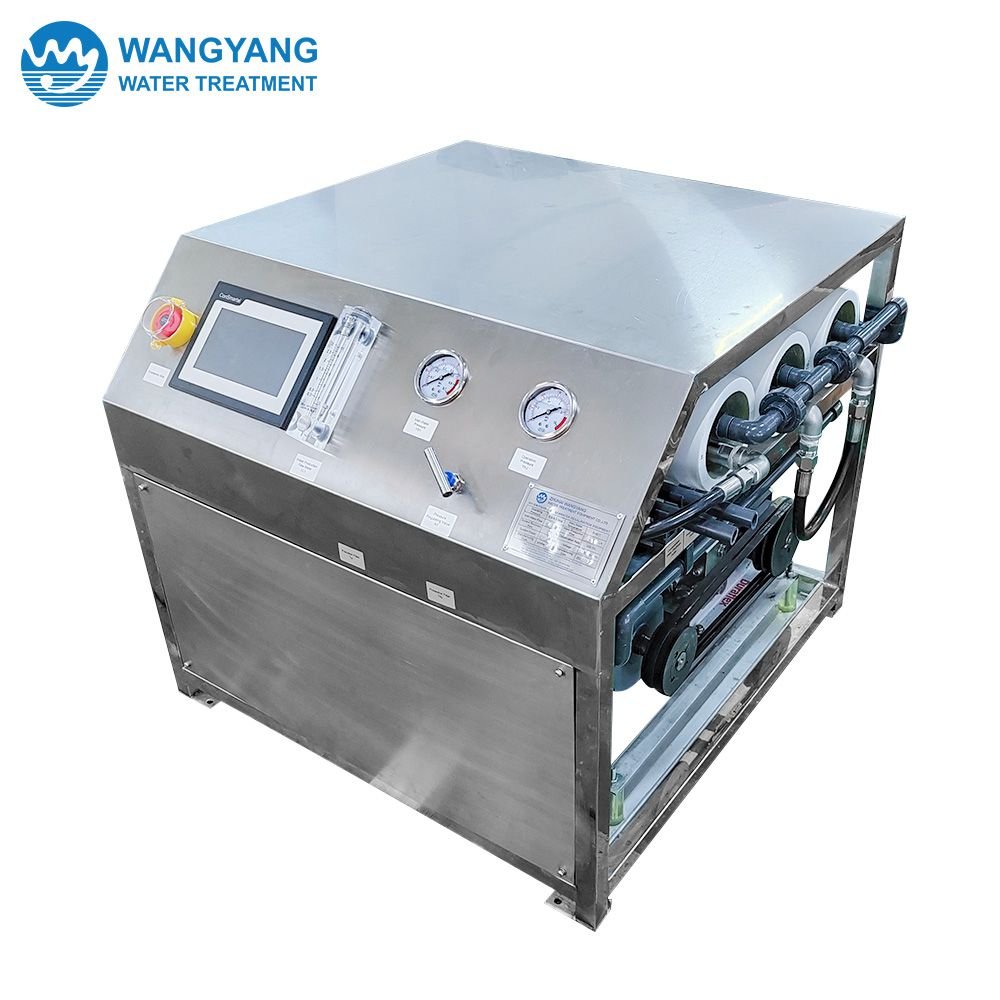

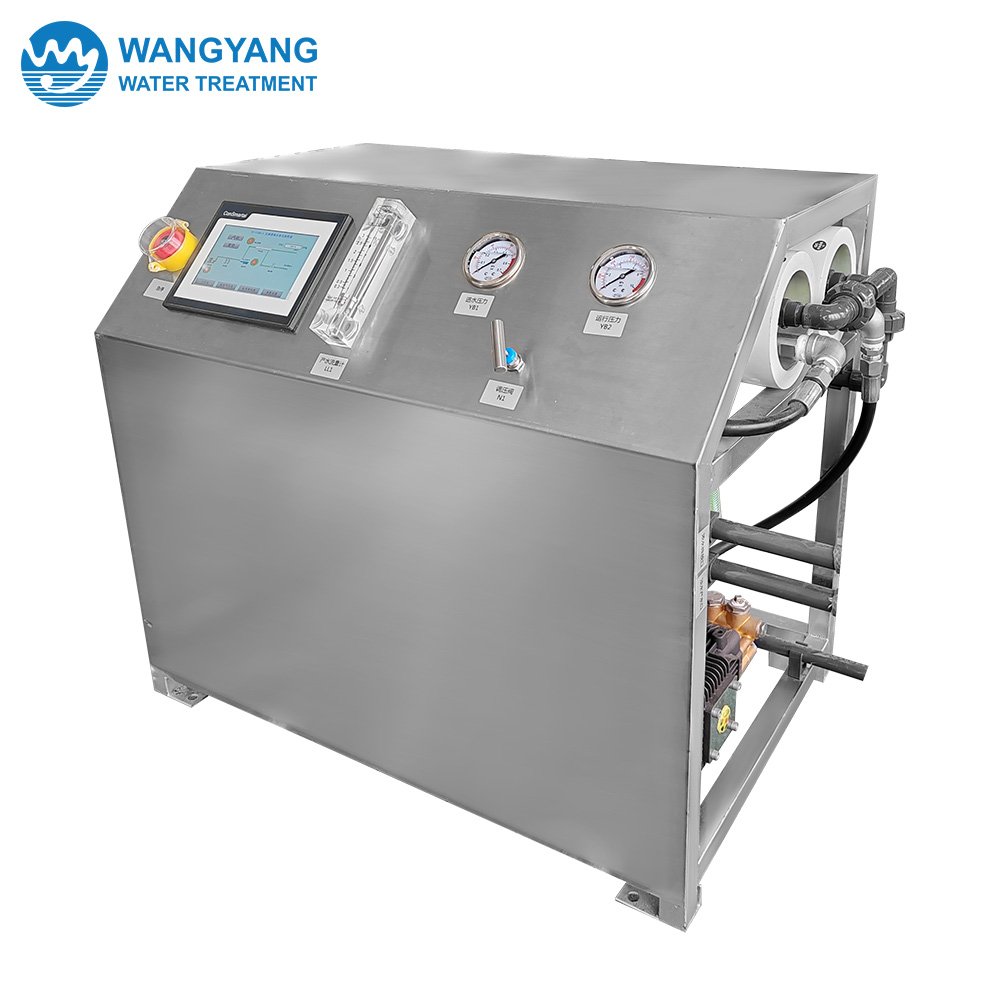

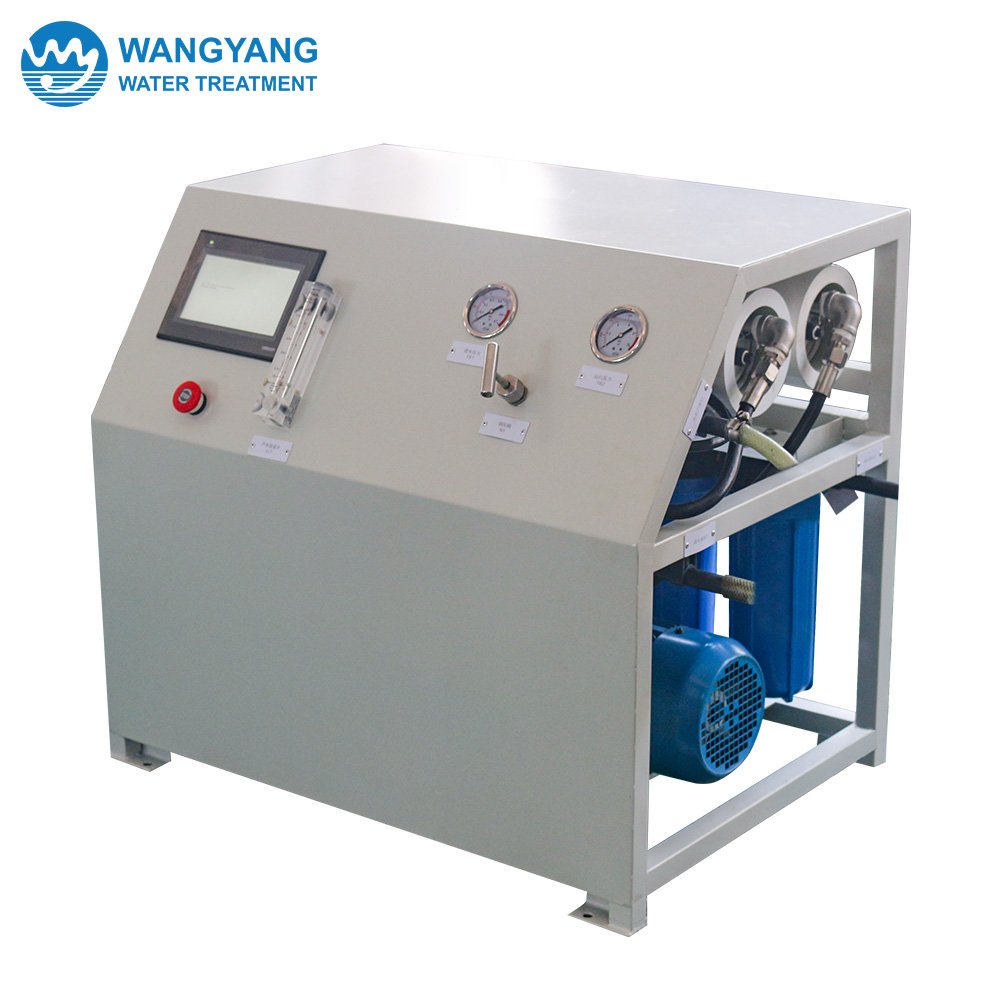

Product description
The Yacht Water Maker Seawater Reverse Osmosis System adopts the international advanced reverse osmosis technology and is designed by optimizing the system.
We have specially designed according to the special application of the yachts, featuring small size, light weight, land occupation, convenient installation and strong adaptability. The equipment is easy to operate and maintain. As long as it provides sea water, power supply, start-up and water production, the equipment has high salt rejection rate, stable performance, safety and reliability, and novel design.
The system can effectively remove inorganic salts, heavy metal ions, organic bacteria, bacteria and other harmful components in seawater, and desalinate seawater into fresh water in accordance with the National drinking Water Sanitation Standard
Specifications
| Model | WY-FSHB |
|---|---|
| Configuration | Single Pass RO |
| Water yield | 1TPD~6TPD |
| RO product water quality(TDS) | <500mg/L |
| Desalination rate | >99.5% |
| Recovery rate | 10%~25% (Depending on temperature and inlet water quality) |
| Operation pressure | <6.5Mpa |
| Power | 2.05KW~2.75KW |
| Voltage | 220V 380V 440V/ 50Hz ~60Hz |
| Protection grade | IP54 |
| Reference Dimension | 800*600*700 mm |
| Frame Material | Stainless steel |
* 1. The amount of water produced refers to the amount of water produced under the conditions of an inlet water temperature of 25 ° C, a salt content of 35,000 mg/L, and an operating pressure of 5 MPa.
2. Equipment can be customized according to customer requirements.
3. Operating environment: roll ±22.5°, avoid sun and rain.
System function
1. High-pressure unloading, when the high-pressure pump outlet pressure exceeds 6.2MPa, the equipment automatically stops and protects and emits an audible and visual alarm.
2. Low-pressure shutdown protection. When the pre-treatment water supply is insufficient and the high-pressure pump inlet pressure is lower than 0.05MPa, the protection action will be automatically stopped and an audible and visual alarm will be issued.
Process flow diagram
Main accessories
- Reverse Osmosis Membrane: USA DOW/ TORAY/ HYDRANAUTICS brand
- Membrane Housing: 1000PSI, FRP
- Precision Filter: 10″ x 5μm, UPVC
- High Pressure Pump: Brass
- Feed Pump: SUS316, NF brand
- Touch Screen: Omron brand
- Electric Element: Schneider brand or equivalent
Equipment list
- RO Water treatment equipment
- User manual, Operation video
- Final document (product certificate, factory test report, packing list, equipment drawing)
- Other consumables accessories
Features and advantages
- High quality imported high pressure pump with high operating efficiency, low energy consumption, low noise and long service life.
- High-quality reverse osmosis membrane with a salt rejection rate of 98.5%, strong anti-pollution ability and stable water quality.
- Rack piping and fittings are made of stainless steel and corrosion-resistant materials to ensure long-lasting equipment and low maintenance costs.
- The operation is simple and easy to use, and the maintenance is convenient. As long as there is electricity, there is sea water, and fresh water can be supplied immediately after the pipeline is started.
- Wide range of power supply: 220V~440V/50~60HZ.
- RO product water quality standard: in line with national drinking water standard .
- Long service life: 15-20 years, rigorous process design to ensure long service life and low maintenance costs.
- The type of equipment combination can be realized: skid mounted, split combination type etc.
